Vehicle Exploded View - APRILIA SR 125 SR Motard 125 4T E3 2012-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

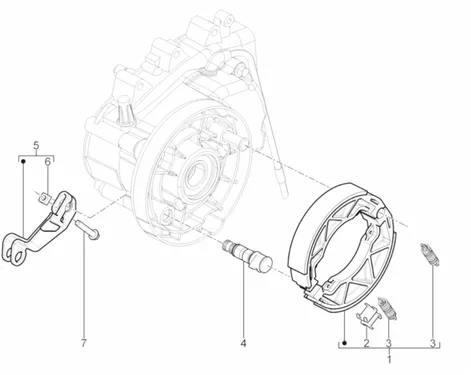

Moteur : 01.35 FREIN POSTERIEUR - MÂCHOIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/341/SR_Motard_125_4T_E3_2012-2014_01.35.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/4/img/67024.jpg)
1 |
MACHOIRES OF BRAKE REAR OEM PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA PRIMAVERA, VESPA SPRINT/APRILIA 125 MOJITO, SPORT-CITY (SET)-56294R5 More informationQuantity required : 1 |
||||||
2 |
266724-PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/7/img/68017.jpg)
3 |
SPRING BRAKE SHOE SET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125-647384 More informationQuantity required : 2 |
||||||
|
4 |
5641365 - LEVIER DU FREIN More informationQuantity required : 1 |
||||||
|
5 |
564215-LEVER DU BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/1/img/68791.jpg)
6 |
NUT CARRE (D6) OEM PIAGGIO COMMON A LA RANGE-828862 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
7 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
