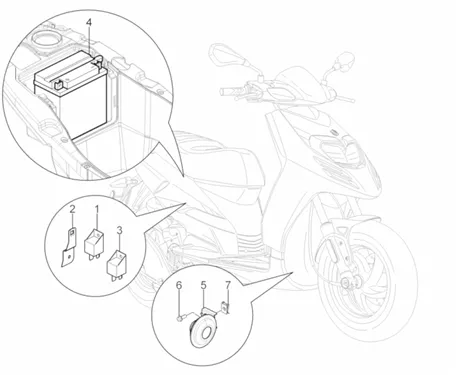

Installation électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/341/SR_Motard_125_4T_E3_2012-2014_06.05.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/7/4/img/67974.jpg)
1 |
RELAIS 12V-80A STARTER MOTOR OEM PIAGGIO 50 FLY 4T, ZIP 4T, TYPHOON 2T + 4T 2011 >/APRILIA 50 SR MOTARD 2T + 4T 2011 >-642318 More informationQuantity required : 1 |
||||||
2 |
582042-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/8/img/67258.jpg)
3 |
RELAIS STARTER MOTOR 12V 30A OEM PIAGGIO COMMON A TOUTE LA RANGE-58246R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/6/img/67316.jpg)
4 |
BATTERY 12V 9AH YB9-B OEM PIAGGIO 50-125 FLY, LIBERTY, TYPHOON, VESPA LX/GILERA 50-125 RUNNER/APRILIA 50 SR H2O, SR-MOTARD, 125 RS, SPORT-CITY-584810 More informationQuantity required : 1 |
||||||
|
5 |
1D000635-AVERTISSEUR SONORE More informationQuantity required : 1 |
||||||
|
5 |
AVERTISSEUR OEM PIAGGIO 50 TYPHOON, FLY, NRG, 125-250-300 VESPA GTS-58093R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
6 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
|
6 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
