Vehicle Exploded View - APRILIA SR 125 SR Motard 125 4T E3 2012-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

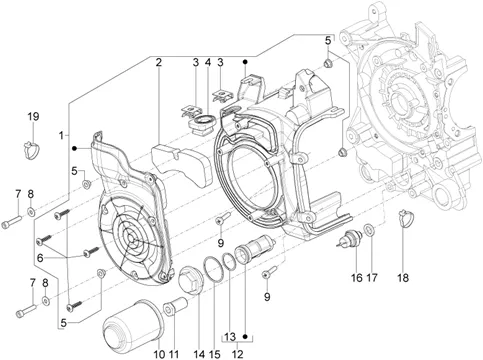

Moteur : 01.23 COUVERCLE VOLANT MAGNETIQUE - FILTRE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/341/SR_Motard_125_4T_E3_2012-2014_01.23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/1/8/img/69118.jpg)
1 |
VOLUTE DE COOLING OEM PIAGGIO 125 VESPA LX, VESPA-S, FLY, LIBERTY, X8 STREET/APRILIA 125 SPORT-CITY, MOJITO-834473 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/2/img/69012.jpg)
2 |
MOUSSE DE AIR FILTER OEM PIAGGIO 125-150 LIBERTY, FLY, X8 2008 <-832703 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
4 |
833802-GASKET More informationQuantity required : 1 |
||||||
|
5 |
843757-BUSH More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
6 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/8/img/127168.jpg)
7 |
SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115 More informationQuantity required : 2 |
||||||
|
8 |
WASHER PLATE (5X12X1) OEM PIAGGIO COMMON A LA RANGE-828583 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
9 |
SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/6/4/9/img/210649.jpg)
10 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS-1A022356 More informationQuantity required : 1 |
||||||
|
10 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS-1A022356 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/1/img/66641.jpg)
11 |
483776-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/4/img/66644.jpg)
12 |
OIL FILTER/CREPINE OEM PIAGGIO125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-483841 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/1/img/66191.jpg)
13 |
GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/9/img/68589.jpg)
14 |
COVER DE CREPINE D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-826165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/9/img/66149.jpg)
15 |
GASKET CAP DE VIDANGE (Ø31, 47X1, 78MM) OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO-285536 More informationQuantity required : 1 |
||||||
|
16 |
642276 - CAPTEUR POUR HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/3/img/66703.jpg)
17 |
GASKET OF MANO OU DE VIDANGE OEM PIAGGIO COMMON A LA RANGE-486075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/7/img/68547.jpg)
18 |
HOSE CLAMP NYLON TYPE RILSAN 2X95MM OEM PIAGGIO COMMON A LA RANGE-825481 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/1/img/69541.jpg)
19 |
CLAMP SERRAGE OEM PIAGGIO COMMON A LA RANGE-847778 More informationQuantity required : 1 |
