Vehicle Exploded View - APRILIA SR 125 SR Motard 125 4T E3 2012-2014 APRILIA

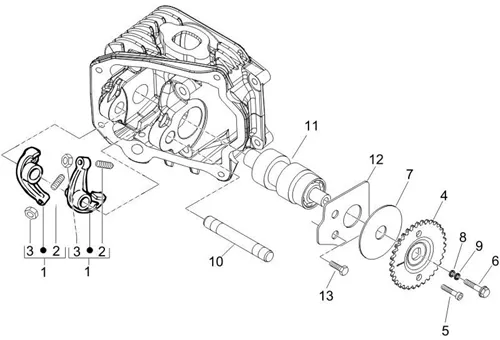

Moteur : 01.11 GROUPE SUPPORT BALANCIERS
Groupe support balanciers
Search
EXHAUST/INTAKE ROCKER "PIAGGIO GENUINE PART" PIAGGIO 125 FLY, LIBERTY, VESPA LX 2005, TYPHOON 2010>, VESPA-S 2007>/APRILIA 125 SR MOTARD 2010>, MOJITO 2003>, SPORT CITY-ONE 2008> -8444895-

1
P2R reference P2R reference 69322
Maker reference Maker reference 8444895

CULBUTEUR/BASCULEUR EXHAUST OU INTAKE OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX 2008 <//APRILIA 125 SR MOTARD 2010 >, MOJITO 2003 >, SPORT CITY-ONE 2008 >-8444895

More information

Quantity required : 2

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R

2
P2R reference P2R reference 68731
Maker reference Maker reference 82817R

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R

More information

Quantity required : 1

NUT DE CULBUTEUR (M6X0. 75) OEM PIAGGIO COMMON A LA RANGE-484819

3
P2R reference P2R reference 66667
Maker reference Maker reference 484819

NUT DE CULBUTEUR (M6X0. 75) OEM PIAGGIO COMMON A LA RANGE-484819

More information

Quantity required : 1

877771 - COURONNE

4
P2R reference P2R reference 70669
Maker reference Maker reference 877771

877771 - COURONNE

More information

Quantity required : 1

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

5
P2R reference P2R reference 65447
Maker reference Maker reference 0186395

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

More information

Quantity required : 1

SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115

6
P2R reference P2R reference 127168
Maker reference Maker reference 1A003115

SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115

More information

Quantity required : 1

487832 - RONDELLE

7
P2R reference P2R reference 66759
Maker reference Maker reference 487832

487832 - RONDELLE

More information

Quantity required : 1

WASHER PLATE DE BALANCIER OEM PIAGGIO 125 2013 <-830446

8
P2R reference P2R reference 68918
Maker reference Maker reference 830446

WASHER PLATE DE BALANCIER OEM PIAGGIO 125 2013 <-830446

More information

Quantity required : 1

WASHER SPECIALE GROUP BALANCIER OEM PIAGGIO 125 SCOOTER 2012 <-830447

9
P2R reference P2R reference 68919
Maker reference Maker reference 830447

WASHER SPECIALE GROUP BALANCIER OEM PIAGGIO 125 SCOOTER 2012 <-830447

More information

Quantity required : 1

486339 - AXE DU CULBUTEURS

10
P2R reference P2R reference 66710
Maker reference Maker reference 486339

486339-SPINDLE DU CULBUTEURS

More information

Quantity required : 1

CAMSHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER 125cc- 2 Valves -8459325-

11
P2R reference P2R reference 69372
Maker reference Maker reference 8459325

CAMSHAFT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC 2 SOUPAPES-8459325

More information

Quantity required : 1

SHEET METAL CAMSHAFT OEM PIAGGIO COMMON A LA RANGE-877309

12
P2R reference P2R reference 70659
Maker reference Maker reference 877309

SHEET METAL CAMSHAFT OEM PIAGGIO COMMON A LA RANGE-877309

More information

Quantity required : 1

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123

13
P2R reference P2R reference 66655
Maker reference Maker reference 484123

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123

More information

Quantity required : 2
