Vehicle Exploded View - APRILIA SR 125 SR Motard 125 4T E3 2012-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

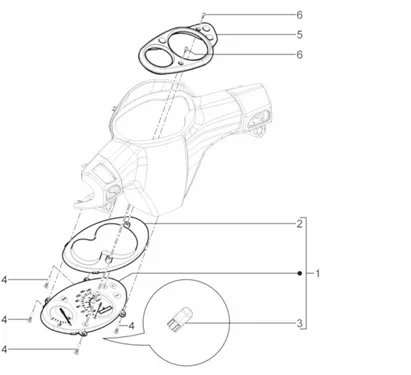

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/341/SR_Motard_125_4T_E3_2012-2014_03.02.PNG)
1 |
643415 - GROUPE INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/1/5/img/69715.jpg)
2 |
VITRE DE INSTRUMENT CLUSTER OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR SUPERMOTARD 2011 >-856440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
3 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
4 |
SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/1/img/67951.jpg)
5 |
ENTOURAGE PANEL DE EDGE OEM PIAGGIO 50 TYPHOON 2011 > 2016/APRILIA 50 SR MOTARD 2012 > 2014-6420190090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/9/8/img/69798.jpg)
6 |
SCREW BTR INSTRUMENT CLUSTER OEM PIAGGIO 50 TYPHOON 2010 > 2016-860535 More informationQuantity required : 2 |
