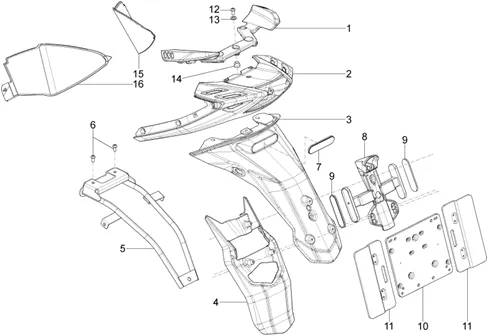

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/341/SR_Motard_125_4T_E3_2012-2014_02.37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/5/8/img/68358.jpg)
1 |
GRIP PASSENGER REAR OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-6574720090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/5/6/img/68356.jpg)
2 |
BRACKET LAMP REAR OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-65746900XH1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/5/9/img/68359.jpg)
3 |
MUD FLAP REAR OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-65747300XH1 More informationQuantity required : 1 |
||||||
4 |
664310-SPACER More informationQuantity required : 1 |
||||||
|
5 |
664434-BRACKET PLATE IM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
6 |
SCREW BTR HEAD BOMBEE (8X16) OEM PIAGGIO COMMON A LA RANGE-582428 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/3/img/67253.jpg)
7 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-58233R5 More informationQuantity required : 1 |
||||||
|
8 |
642018-BRACKET DE PLATE UNIVERSEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/1/3/img/139413.jpg)
9 |
CATADIOPTRE LATERAL OEM PIAGGIO 50 ZIP, VESPA LX, 50-125 LIBERTY, 250-300-400-500 MP3: GILERA 50-125 RUNNER-58231R5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/2/img/67322.jpg)
10 |
DOOR PLATE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-584884 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/1/img/67321.jpg)
11 |
RALLONGE FOR PORTEPLAQUE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-584877 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/6/img/67066.jpg)
12 |
SCREW BTR HEAD BOMBEE (8X25) OEM PIAGGIO COMMON A LA RANGE-564606 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
13 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 3 |
||||||
|
14 |
856459-BUSH More informationQuantity required : 3 |
||||||
|
15 |
672186-PARTIE ARR. DRT. More informationQuantity required : 1 |
||||||
|
16 |
672185-PARTIE ARR. LEFT More informationQuantity required : 1 |
