Vehicle Exploded View - APRILIA SR 125 SR Motard 125 4T E3 2012-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

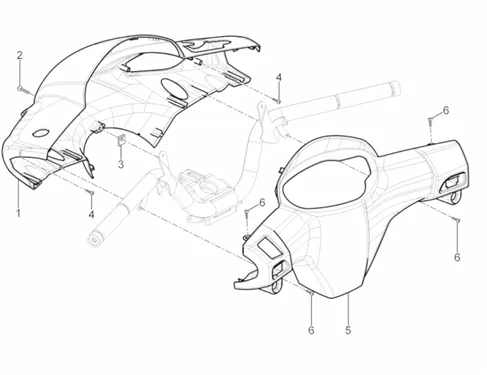

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/341/SR_Motard_125_4T_E3_2012-2014_03.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/5/9/3/img/37593.jpg)
1 |
HANDLEBAR COVER FRONT OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 > (TEINTE MASSE)-1B000543 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/5/7/img/68357.jpg)
1 |
HANDLEBAR COVER FRONT OEM PIAGGIO 50 TYPHOON 2010 > 2016/APRILIA 50 SR MOTARD 2012 > 2014 BLACK 94-6574700090 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
2 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
3 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
4 |
SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115 More informationQuantity required : 2 |
|||||||||
5 |
REAR HANDLEBAR COVER "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> NOIR -1B000541 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/5/4/img/69654.jpg)
5 |
HANDLEBAR COVER REAR OEM PIAGGIO 50 TYPHOON 2012 >/APRILIA 50 SR MOTARD 2012 >, SPORT CITY-ONE 2008 > (BUTTON AVERTISSEUR ROND) BLACK-8530500090 More informationQuantity required : 1 |
|||||||||
|
6 |
SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115 More informationQuantity required : 4 |
|||||||||
