Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

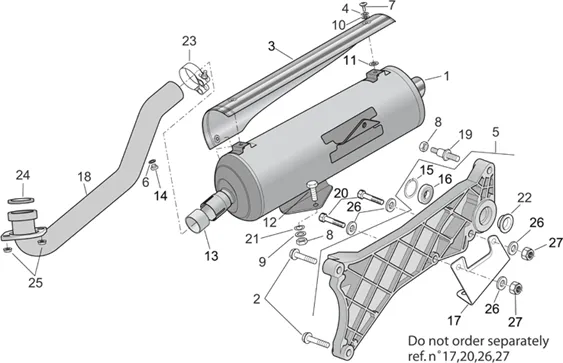

Chassis : 28.38 GROUPE D’ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/610/Scarabeo_125_E2_Mot_Piaggio_2004-2006_28.38.PNG)
1 |
AP8119777 - SILENZIATORE COMPL. More informationQuantity required : 1 |
||||||
|
1 |
AP8119839 - SILENZIATORE COMPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
2 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 2 |
||||||
|
3 |
Protection pot d'échappement |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/4/0/img/72040.jpg)
4 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8163165 More informationQuantity required : 3 |
||||||
|
5 |
AP8146894 - PIASTRA SUPPORTO MARM.ASSEMBL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
6 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
7 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/0/0/img/51000.jpg)
8 |
NUT DE SCREW OF STAND (16X8. 4X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8152400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/1/img/50941.jpg)
9 |
WASHER PLATE (10. 6X24X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8152037 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/6/img/71896.jpg)
10 |
WASHER SPRING (8X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150502 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/4/1/img/72041.jpg)
11 |
WASHER ISOLANTE (8X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8163167 More informationQuantity required : 3 |
||||||
|
12 |
AP8150482-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/7/6/img/71376.jpg)
13 |
GASKET BUSH EXHAUST OEM APRILIA 125 ATLANTIC-AP8119739 More informationQuantity required : 1 |
||||||
|
14 |
AP8119664-CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/0/1/img/51001.jpg)
15 |
CLIPS/CIRCLIPS 47 OEM PIAGGIO COMMON A LA RANGE-AP8152401 More informationQuantity required : 1 |
||||||
|
16 |
AP8152402 - ROULEMENT More informationQuantity required : 1 |
||||||
|
17 |
AP8146958 - STAFFA MARMITTA INFERIORE More informationQuantity required : 1 |
||||||
|
18 |
AP8119816-COLLETTORE DI SCARICO More informationQuantity required : 1 |
||||||
|
19 |
AP8161021 - PERNO ATTACCO MARMITTA SUP. More informationQuantity required : 1 |
||||||
|
20 |
AP8150227 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
21 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/4/2/img/71442.jpg)
22 |
SPACER DE REAR WHEEL OEM PIAGGIO APRILIA 125-250 SPORT-CITY, SCARABEO-AP8121172 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/1/6/img/46516.jpg)
23 |
CLAMP EXHAUST OEM PIAGGIO APRILIA 125 ATLANTIC-AP8119734 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/2/img/66602.jpg)
24 |
GASKET EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-480853 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
25 |
NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
26 |
WASHER PLATE (10. 5X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8152176 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
27 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8150436 More informationQuantity required : 2 |
