Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

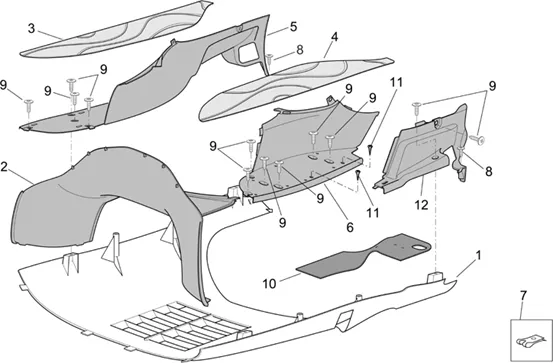

Chassis : 28.16 CARROSSERIE CENTRALE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/610/Scarabeo_125_E2_Mot_Piaggio_2004-2006_28.16.PNG)
1 |
AP8168881 - SOTTOPIANALE More informationQuantity required : 1 |
||||||
|
1 |
AP8179566 - SOTTOPIANALE AZZURRO More informationQuantity required : 1 |
||||||
|
1 |
AP8178039 - SOTTOPIANALE BLU MAIN More informationQuantity required : 1 |
||||||
|
1 |
AP8178663-SOTTOPIANALE GREY More informationQuantity required : 1 |
||||||
|
1 |
AP8178707 - SOTTOPIANALE GRIGIO DIAMOND More informationQuantity required : 1 |
||||||
|
1 |
AP8179056 - PROTECTION.-USA- More informationQuantity required : 1 |
||||||
|
1 |
AP8179207 - SOTTOPIANALE BLU MAIN -USA- More informationQuantity required : 1 |
||||||
|
1 |
AP8179208 - SOTTOPIANALE GRIGIO PEAK -USA- More informationQuantity required : 1 |
||||||
|
1 |
AP8179574 - SOTTOPIANALE USA-CF AZZURRO More informationQuantity required : 1 |
||||||
|
1 |
AP8179584 - SOTTOPIANALE ROSSO More informationQuantity required : 1 |
||||||
|
1 |
AP8179592 - SOTTOPIANALE USA-CF ROSSO More informationQuantity required : 1 |
||||||
|
2 |
AP8158921-TUNNEL BLACK More informationQuantity required : 1 |
||||||
|
3 |
AP8158923-MAT D BLACK More informationQuantity required : 1 |
||||||
|
4 |
AP8158924-MAT G BLACK More informationQuantity required : 1 |
||||||
|
5 |
AP8168879-PIANALE DX More informationQuantity required : 1 |
||||||
|
6 |
AP8168880-PIANALE SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
7 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
8 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 2 |
||||||
|
9 |
AP8152345-SCREW More informationQuantity required : 12 |
||||||
|
10 |
AP8178357 - PARATIA PRESA D'ARIA VARIATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
11 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
||||||
|
12 |
AP8168947-COVER CAP OIL More informationQuantity required : 1 |
