Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

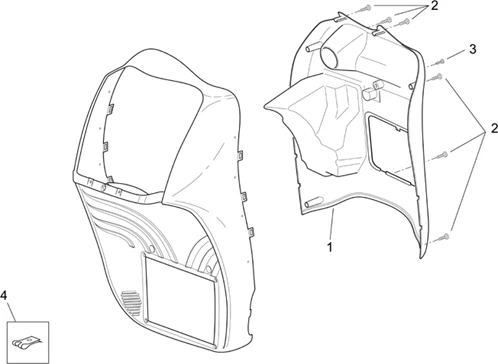

Chassis : 28.14 CARROSSERIE AV. - TABLIER INTERNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/610/Scarabeo_125_E2_Mot_Piaggio_2004-2006_28.14.PNG)
1 |
AP8168825 - TABLIER INTERNE BLEU; More informationQuantity required : 1 |
||||||
|
1 |
AP8178661-SCUDO INTERNO V. GREY PEAK More informationQuantity required : 1 |
||||||
|
1 |
AP8178703 - SCUDO INTERNO V.GRIGIO DIAMOND More informationQuantity required : 1 |
||||||
|
1 |
AP8178743 - SCUDO INTERNO V.SILVER MIR. More informationQuantity required : 1 |
||||||
|
1 |
AP8179548 - SCUDO INT.V.GRIGIO SHOT More informationQuantity required : 1 |
||||||
|
1 |
AP8179564 - SCUDO INT.V.AZZURRO AVIA. More informationQuantity required : 1 |
||||||
|
1 |
AP8179582 - SCUDO INT.V.ROSSO DEVIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
2 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/4/img/50874.jpg)
3 |
SCREW PARKER (5, 5X15, 9) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150426 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
4 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 1 |
