Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

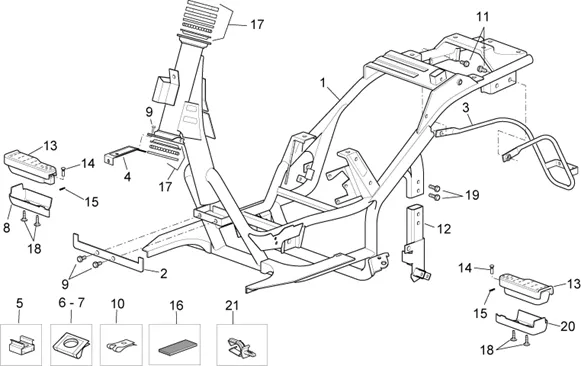

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/610/Scarabeo_125_E2_Mot_Piaggio_2004-2006_28.01.PNG)
1 |
AP8146880 - TELAIO CON CATAFORESI More informationQuantity required : 1 |
|||||||||
|
2 |
AP8134484 - FIXATION TAB. AV; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8146879 - ARCHETTO POSTERIORE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8146892 - SUPPORTO SCUDO ANTERIORE SUP. More informationQuantity required : 1 |
|||||||||
|
5 |
AP8152313-NUT EN CAGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/5/img/71205.jpg)
8 |
INSERT FILETEE ON FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-AP8102902 More informationQuantity required : 1 |
|||||||||
|
8 |
AP8146611-COVER REP-FEET PASS. DTE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
9 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
10 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
11 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 2 |
|||||||||
|
12 |
AP8146939 - SUPPORTO PEDANA SX More informationQuantity required : 1 |
|||||||||
|
13 |
R-pied pass.-paire; |
|||||||||
|
14 |
AP8135677-PIVOT REST-FEET More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/8/img/72138.jpg)
15 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643 More informationQuantity required : 2 |
|||||||||
|
16 |
AP8117073-ADHESIVE SPONGE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/3/1/img/71531.jpg)
17 |
HEADSET "PIAGGIO GENUINE PART" APRILIA 125-250-300 SPORT-CITY, 500 ATLANTIC 2001>2004, 125-250 SCARABEO 1999>2006 -AP8123794- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
18 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 4 |
|||||||||
|
18 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
19 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 2 |
|||||||||
|
20 |
AP8146612-COVER REP-P. PASS. GCHE More informationQuantity required : 1 |
|||||||||
|
21 |
AP8221311-GUIDE-CABLE More informationQuantity required : 1 |
|||||||||
