Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2004-2006 APRILIA

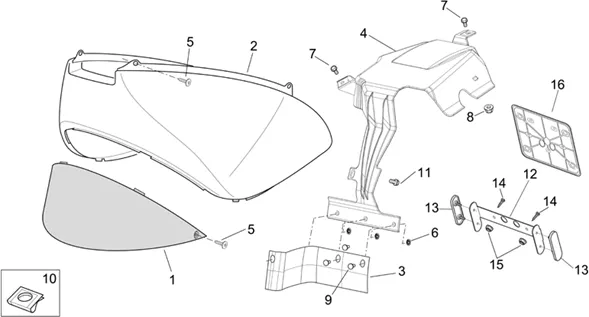

Chassis : 28.19 CARROSSERIE POSTERIEURE I
Carrosserie posterieure I
Search
AP8168878 - COPERCHIO ACCESSO CANDELA

1
P2R reference P2R reference 53434
Maker reference Maker reference AP8168878

AP8168878 - COPERCHIO ACCESSO CANDELA

More information

Quantity required : 1

AP8178664 - SCUDO SOTTOSELLA V.GRIGIO PEAK

2
P2R reference P2R reference 54077
Maker reference Maker reference AP8178664

AP8178664 - SCUDO SOTTOSELLA V.GRIGIO PEAK

More information

Quantity required : 1

AP8178708 - SCUDO SOTTOSELLA V.GRIGIO DIAM

2
P2R reference P2R reference 54106
Maker reference Maker reference AP8178708

AP8178708 - SCUDO SOTTOSELLA V.GRIGIO DIAM

More information

Quantity required : 1

AP8178745 - SCUDO SOTTOSELLA V.SILVER M.

2
P2R reference P2R reference 54129
Maker reference Maker reference AP8178745

AP8178745 - SCUDO SOTTOSELLA V.SILVER M.

More information

Quantity required : 1

AP8179063 - SCUDO SOTTOSELLA V.BLU MAIN

2
P2R reference P2R reference 54312
Maker reference Maker reference AP8179063

AP8179063 - SCUDO SOTTOSELLA V.BLU MAIN

More information

Quantity required : 1

AP8179559 - SCUDO SOTTOSEL.V.GRIG.SH.N/DEC

2
P2R reference P2R reference 54589
Maker reference Maker reference AP8179559

AP8179559 - SCUDO SOTTOSEL.V.GRIG.SH.N/DEC

More information

Quantity required : 1

AP8179577 - SCUDO SOTTOSEL.V.AZZ.AV.N/DEC

2
P2R reference P2R reference 54603
Maker reference Maker reference AP8179577

AP8179577 - SCUDO SOTTOSEL.V.AZZ.AV.N/DEC

More information

Quantity required : 1

AP8179595 - SCUDO SOTTOSEL.V.ROS.DE.N/DEC

2
P2R reference P2R reference 54617
Maker reference Maker reference AP8179595

AP8179595 - SCUDO SOTTOSEL.V.ROS.DE.N/DEC

More information

Quantity required : 1

AP8178366 - PROTEZIONE FUSTELLATA SERBAT.

3
P2R reference P2R reference 53970
Maker reference Maker reference AP8178366

AP8178366 - PROTEZIONE FUSTELLATA SERBAT.

More information

Quantity required : 1

AP8178367 - PROTEZIONE INF.SERBATOIO

4
P2R reference P2R reference 53971
Maker reference Maker reference AP8178367

AP8178367 - PROTEZIONE INF.SERBATOIO

More information

Quantity required : 1

AP8152345 - VIS

5
P2R reference P2R reference 71974
Maker reference Maker reference AP8152345

AP8152345-SCREW

More information

Quantity required : 4

WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450

6
P2R reference P2R reference 71888
Maker reference Maker reference AP8150450

WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450

More information

Quantity required : 3

SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273

7
P2R reference P2R reference 71939
Maker reference Maker reference AP8152273

SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

8
P2R reference P2R reference 71963
Maker reference Maker reference AP8152306

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

More information

Quantity required : 2

RIVET MOUNTING FAIRING OEM PIAGGIO APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO-AP8144109

9
P2R reference P2R reference 71750
Maker reference Maker reference AP8144109

RIVET MOUNTING FAIRING OEM PIAGGIO APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO-AP8144109

More information

Quantity required : 3

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

10
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 2

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

11
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 1

AP8134677 - SUPPORT CATADIOPTRE;

12
P2R reference P2R reference 97074
Maker reference Maker reference AP8134677

AP8134677-BRACKET CATADIOPTRE

More information

Quantity required : 1

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718

13
P2R reference P2R reference 71568
Maker reference Maker reference AP8124718

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718

More information

Quantity required : 2

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

14
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

15
P2R reference P2R reference 71958
Maker reference Maker reference AP8152299

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

More information

Quantity required : 2

BRACKET DE PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET MAXI SCOOTER APRILIA-AP8149034

16
P2R reference P2R reference 71801
Maker reference Maker reference AP8149034

BRACKET DE PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET MAXI SCOOTER APRILIA-AP8149034

More information

Quantity required : 1
