Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2004-2006 APRILIA

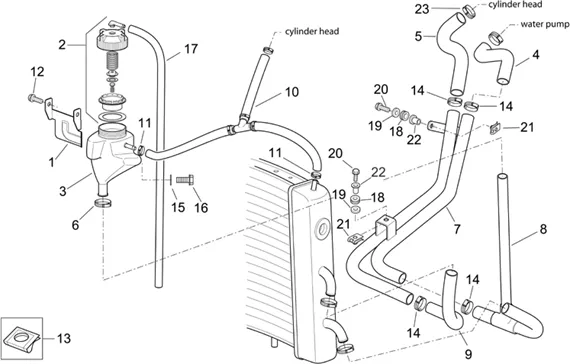

Chassis : 28.29 INSTALLATION REFROIDISSEMENT
Installation refroidissement
Search
AP8134487 - SUP. VASE D'EXPANS.;

1
P2R reference P2R reference 48947
Maker reference Maker reference AP8134487

AP8134487 - SUP. VASE D'EXPANS.;

More information

Quantity required : 1

COOLANT RADIATOR CAP "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, 125-250 SCARABEO, LEONARDO, 400-500 SCARABEO, ATLANTIC -AP8201463

2
P2R reference P2R reference 55357
Maker reference Maker reference AP8201463

COOLANT RADIATOR CAP "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, 125-250 SCARABEO, LEONARDO, 400-500 SCARABEO, ATLANTIC -AP8201463

More information

Quantity required : 1

AP8139255 - VASE D'EXPANSION;

3
P2R reference P2R reference 49306
Maker reference Maker reference AP8139255

AP8139255 - VASE D'EXPANSION;

More information

Quantity required : 1

AP8144666 - TUBO RACCORDO POMPA-TUBO ALL.

4
P2R reference P2R reference 49811
Maker reference Maker reference AP8144666

AP8144666-TUBO RACCORDO PUMP-TUBO ALL.

More information

Quantity required : 1

AP8144665 - TUBO RACCORDO TESTA-TUBO ALL.

5
P2R reference P2R reference 49810
Maker reference Maker reference AP8144665

AP8144665-TUBO RACCORDO TESTA-TUBO ALL.

More information

Quantity required : 1

AP8102732 - COLLIER

6
P2R reference P2R reference 45215
Maker reference Maker reference AP8102732

CLAMP HOSE 17-25 OEM PIAGGIO COMMON A LA RANGE-AP8102732

More information

Quantity required : 1

AP8144669 - TUBO RADIATORE ALLUMINIO

7
P2R reference P2R reference 49812
Maker reference Maker reference AP8144669

AP8144669-TUBO RADIATORE ALLUMINIO

More information

Quantity required : 1

AP8144619 - TUBO RADIATORE/VALVOLA ESP.

8
P2R reference P2R reference 49792
Maker reference Maker reference AP8144619

AP8144619-TUBO RADIATORE/VALVOLA ESP.

More information

Quantity required : 1

AP8144620 - TUBO RACCORDO RADIAT./TUBO ALL

9
P2R reference P2R reference 49793
Maker reference Maker reference AP8144620

AP8144620-TUBO RACCORDO RADIAT./TUBO ALL

More information

Quantity required : 1

AP8144615 - TUBO SFIATO 3 VIE

10
P2R reference P2R reference 49790
Maker reference Maker reference AP8144615

AP8144615-TUBO SFIATO 3 VIE

More information

Quantity required : 1

CLAMP CLIC (13. 5X6) OEM PIAGGIO COMMON A LA RANGE-AP8102765

11
P2R reference P2R reference 71198
Maker reference Maker reference AP8102765

CLAMP CLIC (13. 5X6) OEM PIAGGIO COMMON A LA RANGE-AP8102765

More information

Quantity required : 2

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272

12
P2R reference P2R reference 71938
Maker reference Maker reference AP8152272

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

13
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

CLAMP 16-24X8 OEM PIAGGIO COMMON A LA RANGE-AP8101573

14
P2R reference P2R reference 71152
Maker reference Maker reference AP8101573

CLAMP 16-24X8 OEM PIAGGIO COMMON A LA RANGE-AP8101573

More information

Quantity required : 4

WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015

15
P2R reference P2R reference 71808
Maker reference Maker reference AP8150015

WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015

More information

Quantity required : 1

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

16
P2R reference P2R reference 71942
Maker reference Maker reference AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

More information

Quantity required : 1

HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544

17
P2R reference P2R reference 70868
Maker reference Maker reference 896544

HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544

More information

Quantity required : 1

RUBBER (7X15) OEM PIAGGIO COMMON A LA RANGE-AP8120405

18
P2R reference P2R reference 71393
Maker reference Maker reference AP8120405

RUBBER (7X15) OEM PIAGGIO COMMON A LA RANGE-AP8120405

More information

Quantity required : 2

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013

19
P2R reference P2R reference 71806
Maker reference Maker reference AP8150013

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013

More information

Quantity required : 2

SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799

20
P2R reference P2R reference 69697
Maker reference Maker reference 855799

SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799

More information

Quantity required : 2

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

21
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 1

AP8121736-" BUSH EN " " T " " "

22
P2R reference P2R reference 71483
Maker reference Maker reference AP8121736

AP8121736-" BUSH EN " " T " " "

More information

Quantity required : 2

CLAMP CLIC 28. 6 OEM PIAGGIO COMMON A LA RANGE-AP8120536

23
P2R reference P2R reference 71402
Maker reference Maker reference AP8120536

CLAMP CLIC 28. 6 OEM PIAGGIO COMMON A LA RANGE-AP8120536

More information

Quantity required : 1
