Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

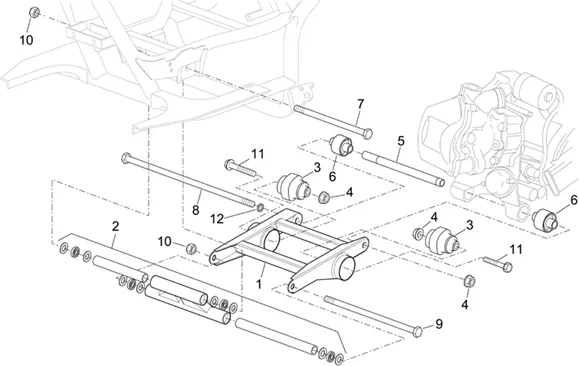

Chassis : 28.07 BIELLETTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/610/Scarabeo_125_E2_Mot_Piaggio_2004-2006_28.07.PNG)
1 |
AP8146881 - BIELLETTA SUPP.MOTORE ASS. More informationQuantity required : 1 |
||||||
|
2 |
AP8146811 - BIELLETTA ATTACCO TELAIO More informationQuantity required : 1 |
||||||
|
3 |
AP8161035 - SILENT BLOCK More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
4 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 3 |
||||||
|
5 |
AP8121628-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
6 |
RUBBER MOUNT DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-486081 More informationQuantity required : 2 |
||||||
|
7 |
AP8121165 - VITE M12X170 More informationQuantity required : 1 |
||||||
|
8 |
AP8161033-SCREW TE 10X280 8. 8 FIL. 25 More informationQuantity required : 1 |
||||||
|
9 |
AP8221227-PIVOT M12X270 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/4/img/71884.jpg)
10 |
NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-AP8150432 More informationQuantity required : 2 |
||||||
|
11 |
AP8152316-SCREW FLANGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
12 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
