Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

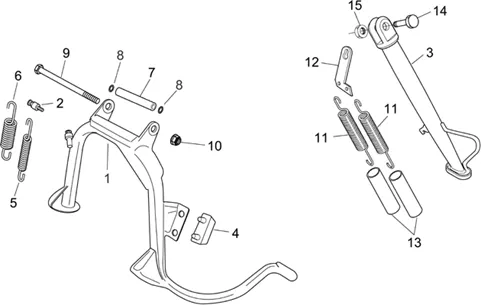

Chassis : 28.02 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/610/Scarabeo_125_E2_Mot_Piaggio_2004-2006_28.02.PNG)
1 |
AP8146897 - CAVALLETTO CENTRALE ASSEMBL. More informationQuantity required : 1 |
||||||
|
2 |
Vis accrochage ressort |
||||||
|
3 |
AP8146770 - CAVALLETTO LATERALE More informationQuantity required : 1 |
||||||
|
3 |
AP8146980 - CAVALLETTO LATERALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/4/img/67224.jpg)
4 |
BUFFER/RUBBER DE STAND PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-581560 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/6/img/67266.jpg)
5 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-582850 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/7/img/67267.jpg)
6 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-582851 More informationQuantity required : 1 |
||||||
|
7 |
Entretoise béquille; |
||||||
|
8 |
Bague d'étanchéité |
||||||
|
9 |
AP8150438-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
10 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/6/img/71426.jpg)
11 |
SPRING RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121014 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/5/0/img/46950.jpg)
12 |
PLATE MOUNTING SPRING SIDE STAND OEM APRILIA 125-250 LEONARDO 1996 > 2004-AP8121876 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/2/img/49632.jpg)
13 |
RUBBER SPRING DE STAND OEM APRILIA 125 LEONARDO 1996 > 2004-AP8144152 More informationQuantity required : 2 |
||||||
|
14 |
AP8152295 - VIS BEQUILLE LAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
15 |
NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001 More informationQuantity required : 1 |
