Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

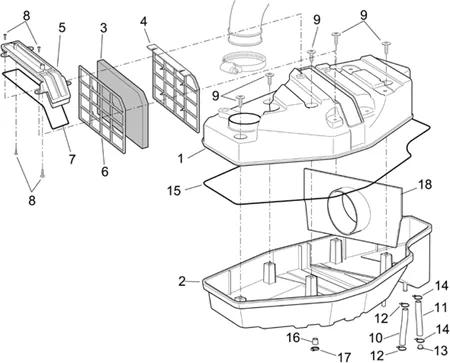

Chassis : 28.31 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/610/Scarabeo_125_E2_Mot_Piaggio_2004-2006_28.31.PNG)
1 |
AP8158788-COUV. BODY FILTER * More informationQuantity required : 1 |
||||||
|
2 |
AP8158789-BASE BODY FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/2/img/71202.jpg)
3 |
AIR FILTER FOAM "PIAGGIO GENUINE PART" APRILIA 125-250 SCARABEO 1999>2006 -AP8102832 More informationQuantity required : 1 |
||||||
|
4 |
AP8139287-GRILLE CAISSE FILTER SUP. More informationQuantity required : 1 |
||||||
|
5 |
AP8139252-COVER DE FILTER More informationQuantity required : 1 |
||||||
|
6 |
AP8139652-GRILLE CAISSE FILTER INF. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
7 |
GASKET COVER DE AIR FILTER (D3) OEM PIAGGIO COMMON A LA RANGE-AP8120615 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
8 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/4/img/50874.jpg)
9 |
SCREW PARKER (5, 5X15, 9) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150426 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/0/6/img/46706.jpg)
10 |
OIL BREATHER HOSE "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO 1996>2001, SCARABEO 1999>2006 -AP8120977- More informationQuantity required : 1 |
||||||
|
11 |
AP8144038-FUEL HOSE 6X10 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
12 |
AP8102239-CLAMP CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/9/img/71419.JPG)
13 |
CAP DE VIDANGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120876 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
14 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 2 |
||||||
|
15 |
890513-GASKET D. 4 More informationQuantity required : 1 |
||||||
|
16 |
AP8141132-RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/9/img/71199.jpg)
17 |
CLAMP HOSE (D 15. 8) OEM PIAGGIO COMMON A LA RANGE-AP8102766 More informationQuantity required : 1 |
||||||
|
18 |
AP8158791-PROTECTOR More informationQuantity required : 1 |
