Vehicle Exploded View - APRILIA SCARABEO 4T 100 E2 2001-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

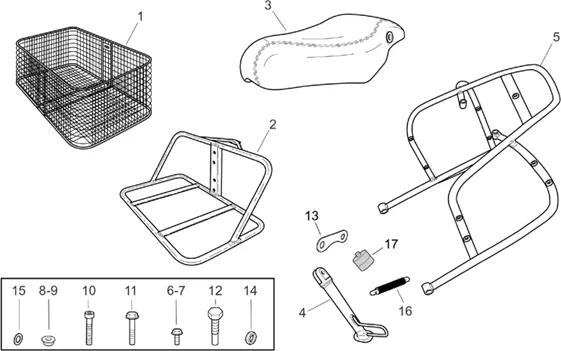

Moteur : 29.45 SIDE CASES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/621/Scarabeo_100_4T_E2_2001-2005_29.45.PNG)
1 |
AP8178824 - CESTO ANTERIORE More informationQuantity required : 1 |
||||||
|
2 |
AP8178764 - PORTAPACCHI ANTERIORE More informationQuantity required : 1 |
||||||
|
3 |
AP8129440 - SELLA LUNGA GRIGIO SCURO More informationQuantity required : 1 |
||||||
|
4 |
AP8146903 - CAVALLETTO CON CATAF. More informationQuantity required : 1 |
||||||
|
5 |
AP8178765 - PORTABORSE POSTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
6 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
7 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
9 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
10 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
11 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 2 |
||||||
|
12 |
AP8152295 - VIS BEQUILLE LAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/5/0/img/46950.jpg)
13 |
PLATE MOUNTING SPRING SIDE STAND OEM APRILIA 125-250 LEONARDO 1996 > 2004-AP8121876 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
14 |
NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
15 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/6/img/71426.jpg)
16 |
SPRING RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121014 More informationQuantity required : 2 |
||||||
|
17 |
AP8144509-BUFFER FIN DE COURSE STAND More informationQuantity required : 1 |
