Vehicle Exploded View - APRILIA SCARABEO 4T 100 E2 2001-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

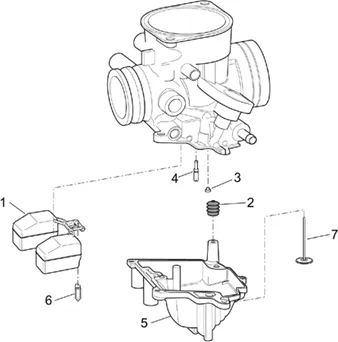

Moteur : 29.22 CARBURATEUR III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/621/Scarabeo_100_4T_E2_2001-2005_29.22.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/0/img/68780.jpg)
1 |
FLOTTEUR OEM PIAGGIO 50 FLY, VESPA LX, LIBERTY, ZIP 4T-828832 More informationQuantity required : 1 |
||||||
2 |
828838-SLEEVE More informationQuantity required : 1 |
||||||
|
3 |
CM142101-GICLEUR MAXI More informationQuantity required : 1 |
||||||
|
4 |
CM142301-GICLEUR MIN More informationQuantity required : 1 |
||||||
|
5 |
CM142802-CUVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
6 |
POINTEAU OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC-CM147102 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/0/9/0/img/96090.jpg)
7 |
ROD OF PUMP DE REPRISE OEM PIAGGIO 50 FLY 4T, VESPA LX 4T, PRIMAVERA, SPRINT-CM151801 More informationQuantity required : 1 |
