Vehicle Exploded View - APRILIA SCARABEO 4T 100 E2 2001-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

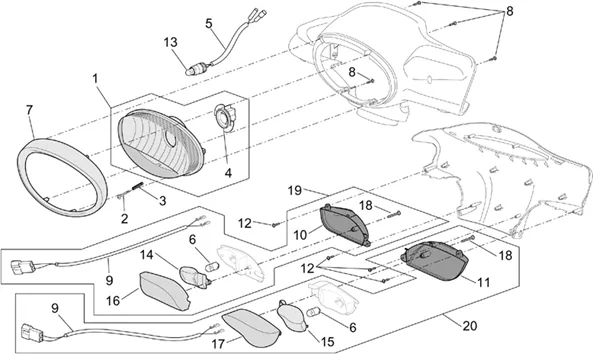

Chassis : 28.27 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/621/Scarabeo_100_4T_E2_2001-2005_28.27.PNG)
1 |
AP8124711 - PHARE AVANT; More informationQuantity required : 1 |
||||||
|
2 |
AP8150415-SCREW More informationQuantity required : 1 |
||||||
|
3 |
AP8221198-SPRING REGLAGE HEADLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/2/7/img/57227.jpg)
4 |
DOOR-AMPOULE LAMP UNIT (AMPOULE BA20D) OEM PIAGGIO APRILIA 50 SCARABEO-AP8224041 More informationQuantity required : 1 |
||||||
|
5 |
AP8124809-WIRING LAMP AV More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/0/1/0/img/59010.jpg)
7 |
ENJOLIVEUR DE HEADLAMP CHROMEE OEM PIAGGIO APRILIA 50 SCARABEO-AP8258043 More informationQuantity required : 1 |
||||||
|
7 |
AP8258734-BUSH, SILVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
8 |
SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/7/img/56297.jpg)
9 |
WIRING DE INDICATOR FRONT OEM PIAGGIO APRILIA 50 SCARABEO, SR H2O-AP8212698 More informationQuantity required : 2 |
||||||
|
10 |
AP8224429-BODY HEADLAMP FRONT D. More informationQuantity required : 1 |
||||||
|
11 |
AP8224430-BODY HEADLAMP FRONT G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/1/img/71971.jpg)
12 |
SCREW BTR CARROSSERIE (3X12) OEM PIAGGIO COMMON A LA RANGE-AP8152334 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
13 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
|
14 |
AP8224425-VITRE INT. IND. DIR. D More informationQuantity required : 1 |
||||||
|
15 |
AP8224426-VITRE INT. IND. DIR. G More informationQuantity required : 1 |
||||||
|
16 |
AP8224423-GLACE CLIGN. D * More informationQuantity required : 1 |
||||||
|
17 |
AP8224424-GLACE CLIGN. G More informationQuantity required : 1 |
||||||
|
18 |
AP8124563-SCREW More informationQuantity required : 2 |
||||||
|
19 |
AP8224360 - CLIGNOTANT AV DROITE; More informationQuantity required : 1 |
||||||
|
20 |
AP8224361-FRONT LEFT INDICATOR More informationQuantity required : 1 |
