Vehicle Exploded View - APRILIA SCARABEO 4T 100 E2 2001-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

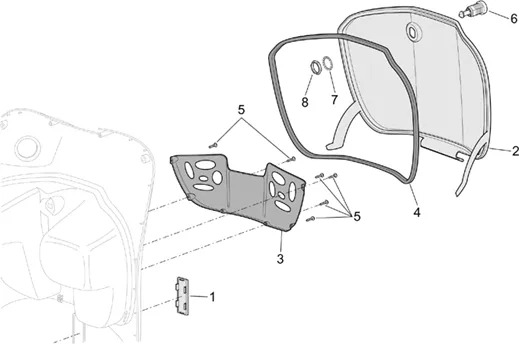

Chassis : 28.09 CARROSSERIE CENTRALE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/621/Scarabeo_100_4T_E2_2001-2005_28.09.PNG)
1 |
Couv. données hom., gris; |
||||||
|
2 |
Abattant porte-objets bleu |
||||||
|
2 |
AP8258403 - ABATTANT PORTE-OBJETS BLANC More informationQuantity required : 1 |
||||||
|
2 |
AP8258405 - ABATTANT PORTE-OBJETS BLEU; More informationQuantity required : 1 |
||||||
|
2 |
Abattant porte-objets blanc; |
||||||
|
2 |
AP8258408 - ABATTANT PORTE-OBJETS ROUGE; More informationQuantity required : 1 |
||||||
|
2 |
AP8258475 - ABATT.PORTE-OBJ. LEMON A. More informationQuantity required : 1 |
||||||
|
2 |
AP8258640 - ABATTANT PORTE-OBJETS NOIR More informationQuantity required : 1 |
||||||
|
2 |
AP8258710 - ABATTANT PORTE-OBJETS GRIS More informationQuantity required : 1 |
||||||
|
2 |
AP8258761 - ABATTANT PORTE-OBJETS ROUGE More informationQuantity required : 1 |
||||||
|
2 |
AP8258771 - ABATTANT PORTE-OBJETS BLEU More informationQuantity required : 1 |
||||||
|
2 |
AP8258894 - ABATTANT PORTE-OBJETS BLEU More informationQuantity required : 1 |
||||||
|
2 |
AP8268105 - SPORTELLO V.GRIGIO DIAM. More informationQuantity required : 1 |
||||||
|
2 |
AP8268117 - SPORTELLO V.SILVER OASIS More informationQuantity required : 1 |
||||||
|
2 |
AP8238930 - ABATTANT PORTE-OBJETS BLANC More informationQuantity required : 1 |
||||||
|
3 |
AP8148736-GRILLE INTERNE DOOR-OBJETS More informationQuantity required : 1 |
||||||
|
4 |
AP8220407-GASKET UNDERSEAT COMPARTMENT BLACK 7X8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/1/img/71971.jpg)
5 |
SCREW BTR CARROSSERIE (3X12) OEM PIAGGIO COMMON A LA RANGE-AP8152334 More informationQuantity required : 6 |
||||||
|
6 |
AP8104600-LOCK DOOR-OBJETS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
7 |
WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
8 |
NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194 More informationQuantity required : 1 |
