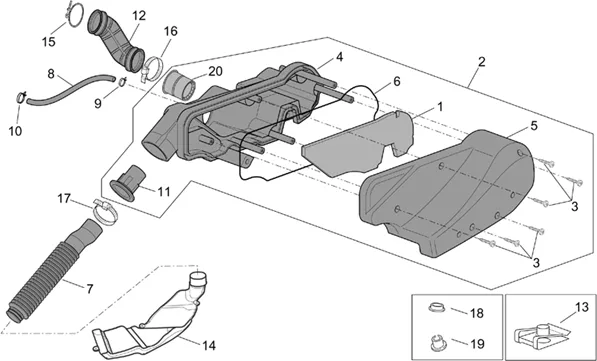

Chassis : 28.19 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/621/Scarabeo_100_4T_E2_2001-2005_28.19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/8/3/img/157083.jpg)
1 |
AIR FILTER (PREMIUM) OEM PIAGGIO APRILIA 50 SCARABEO 2002 > 4T-AP82022490P More informationQuantity required : 1 |
||||||
|
1 |
AIR FILTER (PREMIUM) OEM PIAGGIO APRILIA 50 SCARABEO 2002 > 4T-AP82022490P More informationQuantity required : 1 |
||||||
2 |
AP8179852 - BOITE FILTRE 100 4T More informationQuantity required : 1 |
||||||
|
2 |
Caisse filtre complète |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
||||||
|
4 |
AP8249936-BODY FILTER More informationQuantity required : 1 |
||||||
|
5 |
AP8179849 - COUVERCLE 100 4T More informationQuantity required : 1 |
||||||
|
6 |
AP8220616-GASKET More informationQuantity required : 1 |
||||||
|
7 |
AP8144438-HOSE D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
8 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
|
9 |
AP8102378-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
10 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
|
11 |
AP8258339-CAP CALIBRE More informationQuantity required : 1 |
||||||
|
12 |
Manchon carb.-cais.filtre |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
14 |
AP8220611-MANIFOLD ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/9/1/img/55391.jpg)
15 |
CLAMP SLEEVE AIR (42/50) OEM PIAGGIO COMMON A LA RANGE-AP8201799 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/0/img/66230.jpg)
16 |
CLAMP (D64) OEM PIAGGIO COMMON A LA RANGE-289690 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/1/7/img/71217.jpg)
17 |
CLAMP SERRAGE (23-35MM) OEM PIAGGIO COMMON A LA RANGE-AP8104097 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
18 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
19 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 1 |
||||||
|
20 |
AP8161032-BOCCOLA ASPIRAZIONE More informationQuantity required : 1 |
