Vehicle Exploded View - APRILIA SCARABEO 4T 100 E2 2001-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

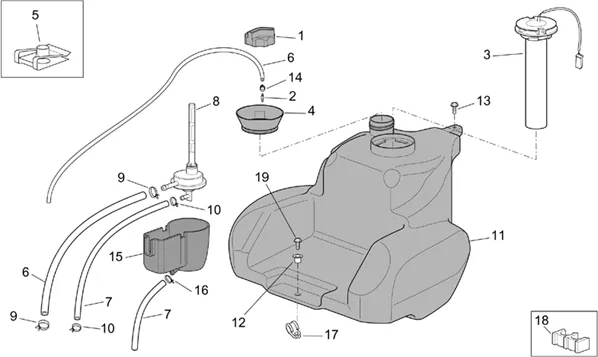

Chassis : 28.17 RÉSERVOIR ESSENCE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/621/Scarabeo_100_4T_E2_2001-2005_28.17.PNG)
1 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
2 |
FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944 More informationQuantity required : 1 |
||||||
|
3 |
Sonde niveau essence |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/3/img/71753.jpg)
4 |
RUBBER COLLECTE FUEL OEM PIAGGIO COMMON A LA RANGE-AP8144187 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
6 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 2 |
||||||
|
7 |
AP8120955-TUBO GREY 3X8 More informationQuantity required : 1 |
||||||
|
8 |
AP8104407 - ROBINET ESSENCE; More informationQuantity required : 1 |
||||||
|
9 |
AP8102377-CLAMP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/8/img/71388.jpg)
10 |
CLAMP HOSE (D8) OEM PIAGGIO COMMON A LA RANGE-AP8120179 More informationQuantity required : 2 |
||||||
|
11 |
AP8258691 - RESERVOIR ESSENCE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
12 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/2/img/71152.jpg)
14 |
CLAMP 16-24X8 OEM PIAGGIO COMMON A LA RANGE-AP8101573 More informationQuantity required : 1 |
||||||
|
15 |
AP8258215 - BAC ESSENCE; More informationQuantity required : 1 |
||||||
|
16 |
AP8101770-CLAMP CLIC More informationQuantity required : 1 |
||||||
|
17 |
AP8134167-PLATE HOSE BRAKE More informationQuantity required : 1 |
||||||
|
18 |
AP8201808-GUIDE-CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
19 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 1 |
