Vehicle Exploded View - APRILIA SCARABEO 4T 100 E2 2001-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

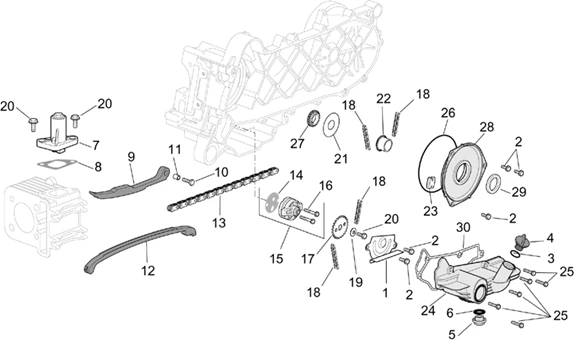

Moteur : 29.42 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/621/Scarabeo_100_4T_E2_2001-2005_29.42.PNG)
1 |
969625-PROTECTOR OIL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
2 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 5 |
|||||||||
|
3 |
Joint |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/5/img/69325.jpg)
4 |
CAP OIL SCOOT OEM PIAGGIO 50 ZIP 2000 4T, FLY 2006 > 4T, LIBERTY 2006 > 4T, VESPA LX 2006 > 4T, PRIMAVERA 2013 > 4T, SPRINT 2014 > 4T/APRILIA 50 SCARABEO 2002 > 4T, SPORT-CITY 2008 > 4T-844721 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/0/img/66500.jpg)
5 |
CAP DE VIDANGE OIL OEM PIAGGIO COMMON A LA RANGE 1998 > 2005-436692 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/1/img/66191.jpg)
6 |
GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
7 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
|||||||||
|
7 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
8 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/6/4/img/68764.jpg)
9 |
GLISSIERE TENDEUR DE CHAIN OEM PIAGGIO 50-100 COMMON A LA RANGE-828561 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
10 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
|||||||||
|
11 |
478247 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
|
11 |
SPACER (6X8X9. 6) OEM PIAGGIO COMMON A LA RANGE-4782476 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/9/5/img/70995.jpg)
12 |
PATIN DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-969877 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/7/img/70967.jpg)
13 |
CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-96933R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/4/img/66504.jpg)
14 |
GASKET OF CASING OIL PUMP OEM PIAGGIO 50 4T ZIP, LIBERTY, FLY, PRIMAVERA, SPRINT-436751 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/4/9/img/70649.jpg)
15 |
OIL PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-877262 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/8/img/66438.jpg)
16 |
SCREW FLANGE TH (5X30) OEM PIAGGIO COMMON A LA RANGE-433477 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/2/img/66182.jpg)
17 |
SPROCKET OIL PUMP OEM PIAGGIO 50-125-300 COMMON A LA RANGE-287913 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/4/img/66454.jpg)
18 |
CHAIN DE CONTROL OIL PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-434447 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
19 |
WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
20 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/0/img/66380.jpg)
21 |
WASHER AJUSTEMENT OEM PIAGGIO COMMON A LA RANGE-430535 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/8/img/69068.jpg)
22 |
SPROCKET OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-833495 More informationQuantity required : 1 |
|||||||||
|
23 |
Tampon chaîne pompe huile |
|||||||||
|
24 |
Coupe huile moteur |
|||||||||
|
25 |
Vis bride |
|||||||||
|
26 |
Joint torique |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/9/7/img/174697.jpg)
27 |
SPROCKET TIMING OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP, PRIMAVERA-9697476 More informationQuantity required : 1 |
|||||||||
|
27 |
SPROCKET TIMING OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP, PRIMAVERA-9697476 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/5/img/66555.jpg)
28 |
COVER TIMING (LIVRE WITH GASKET) OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, VESPA PRIMAVERA 4T, VESPA LX 4T-478324 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/4/img/66184.jpg)
29 |
OIL SEAL (22X32X7) VILEBREQUIN COTE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-2879633 More informationQuantity required : 1 |
|||||||||
|
30 |
Joint |
|||||||||
