Vehicle Exploded View - APRILIA SCARABEO 4T 100 E2 2001-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

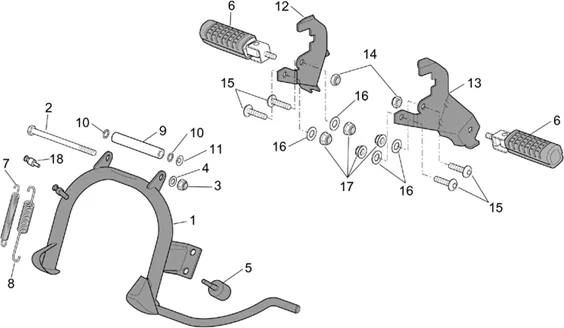

Chassis : 28.02 REPOSE-PIEDS BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/621/Scarabeo_100_4T_E2_2001-2005_28.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/7/img/67417.jpg)
1 |
CENTRE STAND OEM PIAGGIO 50-125 LIBERTY 4T 1998 > 2012/APRILIA 50 SCARABEO 4T 2002 > 2012-600183 More informationQuantity required : 1 |
||||||
2 |
AP8150438-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
3 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
4 |
WASHER PLATE (10. 5X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8152176 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/4/img/67224.jpg)
5 |
BUFFER/RUBBER DE STAND PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-581560 More informationQuantity required : 1 |
||||||
|
6 |
Marchep. pass.-couple |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/6/6/img/57066.JPG)
7 |
SPRING INNER DE RETOUR STAND OEM PIAGGIO SCARABEO 50 4T 2005 >-AP8221332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/6/7/img/57067.JPG)
8 |
SPRING EXTERIEUR DE RETOUR STAND OEM PIAGGIO SCARABEO 50 4T 2005 >-AP8221333 More informationQuantity required : 1 |
||||||
|
9 |
AP8221331-SPACER STAND More informationQuantity required : 1 |
||||||
|
10 |
Bague d'étanchéité |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
11 |
WASHER SPRING (D10. 5) OEM PIAGGIO COMMON A LA RANGE-AP81216976 More informationQuantity required : 1 |
||||||
|
12 |
AP8146412 - SUPPORT R-P. D PASS.; More informationQuantity required : 1 |
||||||
|
13 |
AP8146535 - SUPPORT R-P. G PASS.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8150436 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/5/img/50945.jpg)
15 |
SCREW BTR HEAD BOMBEE (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152058 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
16 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
17 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 4 |
||||||
|
18 |
Vis accrochage ressort |
