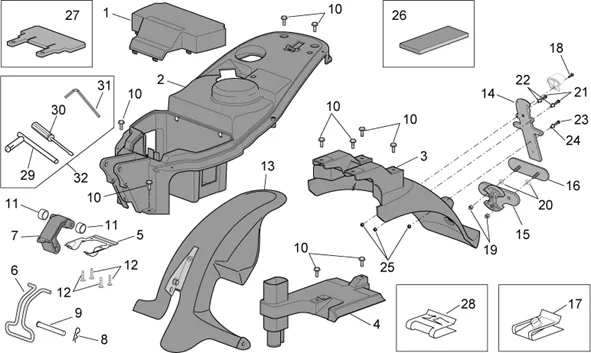

Chassis : 28.14 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/621/Scarabeo_100_4T_E2_2001-2005_28.14.PNG)
1 |
AP8258171-COVER BATTERY More informationQuantity required : 1 |
||||||
|
2 |
AP8258216-LOGEMENT SOUS-SEAT More informationQuantity required : 1 |
||||||
|
3 |
Garde-boue arrière rouge; |
||||||
|
3 |
AP8226704 - GARDE-BOUE AR. PEINT BLANC V.; More informationQuantity required : 1 |
||||||
|
3 |
AP8226710 - GARDE-BOUE ARRIERE BLEU; More informationQuantity required : 1 |
||||||
|
3 |
AP8226713 - GARDE-BOUE AR. PEINT BLANC; More informationQuantity required : 1 |
||||||
|
3 |
Garde-boue AR. Peint lemon A.; |
||||||
|
3 |
AP8226746-GUARD-MUD REAR BLACK More informationQuantity required : 1 |
||||||
|
3 |
AP8226751-GUARD-MUD REAR GREY More informationQuantity required : 1 |
||||||
|
3 |
AP8226755 - GARDE-BOUE ARRIERE ROUGE; More informationQuantity required : 1 |
||||||
|
3 |
AP8226757 - GARDE-BOUE ARRIERE BLEU; More informationQuantity required : 1 |
||||||
|
3 |
AP8226778 - GARDE-BOUE ARRIERE BLEU; More informationQuantity required : 1 |
||||||
|
3 |
AP8226808-MUDGUARD POST. V. NERO DARK. More informationQuantity required : 1 |
||||||
|
3 |
AP8226811 - PARAFANGO POST.V.TECHNO GR. More informationQuantity required : 1 |
||||||
|
3 |
AP8226855 - PARAFANGO POST.V.BIA.APR.N/DEC More informationQuantity required : 1 |
||||||
|
3 |
AP8156177-MUDGUARD POST. V. NERO APRILIA More informationQuantity required : 1 |
||||||
|
4 |
AP8226648-DOOR-OBJETS More informationQuantity required : 1 |
||||||
|
5 |
AP8232799-LATCH CHARNIERE More informationQuantity required : 1 |
||||||
|
6 |
AP8232801-CHARNIERE REAR SEAT More informationQuantity required : 1 |
||||||
|
7 |
AP8232800-CHARNIERE FRONT SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/3/img/72133.JPG)
8 |
GOUPILLE (20X1. 2) OEM PIAGGIO COMMON A LA RANGE-AP8201431 More informationQuantity required : 1 |
||||||
|
9 |
AP8221185-PIVOT CHARNIERE SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
10 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 10 |
||||||
|
11 |
AP8221186-BUSH CHARNIERE SEAT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
12 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
||||||
|
13 |
AP8126964-MUD FLAP ANTI-ECLABOUSSURES More informationQuantity required : 1 |
||||||
|
14 |
AP8234203-BRACKET ECLAIRAGE PLATE More informationQuantity required : 1 |
||||||
|
15 |
AP8235118 - SUPPORT CATADIOPTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
16 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
18 |
SCREW CRUCIFORME (4. 2X20) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150270 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.jpg)
20 |
WASHER 4X16 OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150159 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
21 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
|
22 |
AP8121790-" BUSH EN " " T " " " More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
23 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
24 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
25 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
26 |
AP8117033-ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
|
27 |
AP8104427-PROTECTOR CAOUTCH. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
28 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
|
29 |
AP8202292 - SOCKET SPANNER More informationQuantity required : 1 |
||||||
|
30 |
AP8201884-SCREWDRIVER More informationQuantity required : 1 |
||||||
|
31 |
852391-CLEF More informationQuantity required : 1 |
||||||
|
32 |
859997-TROUSSE A OUTILS More informationQuantity required : 1 |
