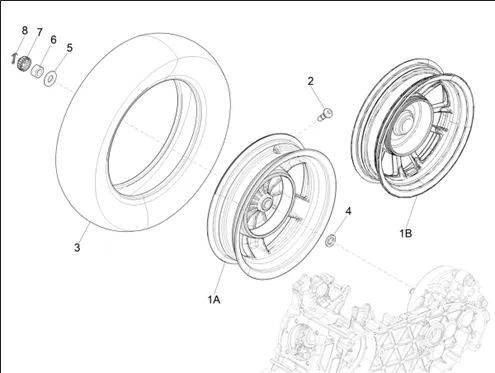

Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera 125 4T 3V iGET ABS E4 2016-2020(EMEA) VESPA

Suspensions - roues : 04.12 ROUE ARRIÈRE
Roue arrière
Search
1C001115R - ROUE ARR 11 X 2,75"

1A
P2R reference P2R reference 140113
Maker reference Maker reference 1C001115R

1C001115R-WHEEL ARR 11 X 2, 75 "

More information

Quantity required : 1

5A001557 - ROUE ARRIERE 3,00 X 12"

1A
P2R reference P2R reference 221752
Maker reference Maker reference 5A001557

5A001557-REAR WHEEL 3, 00 X 12 "

More information

Quantity required : 1

1C003878R - ROUE AR. 3.00X12"

1A
P2R reference P2R reference 155539
Maker reference Maker reference 5A001364R

5A001364R-WHEEL AR. 3. 00X12 "

More information

Quantity required : 1

1C003571R - ROUE ARR 3"X12"

1B
P2R reference P2R reference 155540
Maker reference Maker reference 1C003571R

1C003571R-WHEEL ARR 3 " X12 "

More information

Quantity required : 1

1C005389 - REAR WHEEL 3 X 12

1B
P2R reference P2R reference 177383
Maker reference Maker reference 5A001358

RIM/REAR WHEEL OEM PIAGGIO 125 PRIMAVERA VESPA 2016 >-5A001358

More information

Quantity required : 1

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679

2
P2R reference P2R reference 67350
Maker reference Maker reference 597679

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679

More information

Quantity required : 1

1C004260 - PNEU 120/70-12"

3
P2R reference P2R reference 160665
Maker reference Maker reference 1C004260

1C004260-TYRE 120/70-12 "

More information

Quantity required : 1

1C002663 - PNEU 120/70-12"

3
P2R reference P2R reference 146195
Maker reference Maker reference 1C002663

1C002663-TYRE 120/70-12 "

More information

Quantity required : 1

1R000077 - PNEU ARRIERE 120/70-11 M/C POWER PURESC

3
P2R reference P2R reference 65894
Maker reference Maker reference 1R000077

1R000077-TYRE REAR 120/70-11 M/C POWER PURESC

More information

Quantity required : 1

1C002691 - PNEU 120/70-11"

3
P2R reference P2R reference 149284
Maker reference Maker reference 1C002691

1C002691-TYRE 120/70-11 "

More information

Quantity required : 1

SPACER OEM PIAGGIO COMMON A LA RANGE-601205

4
P2R reference P2R reference 67474
Maker reference Maker reference 601205

SPACER OEM PIAGGIO COMMON A LA RANGE-601205

More information

Quantity required : 1

WASHER (16X34, 8X2, 2) REAR WHEEL OEM PIAGGIO COMMON A LA RANGE-273099

5
P2R reference P2R reference 66122
Maker reference Maker reference 273099

WASHER (16X34, 8X2, 2) REAR WHEEL OEM PIAGGIO COMMON A LA RANGE-273099

More information

Quantity required : 1

1C004202 - SELF LOCKING NUT WITH STEEL INSERT

6
P2R reference P2R reference 171990
Maker reference Maker reference 1C004202

NUT (M16) DE SECURITE OEM PIAGGIO COMMON A LA RANGE-1C004202

More information

Quantity required : 1

NUT (M16) OEM PIAGGIO COMMON A TOUTE LA RANGE-563728

6
P2R reference P2R reference 67035
Maker reference Maker reference 563728

NUT (M16) OEM PIAGGIO COMMON A TOUTE LA RANGE-563728

More information

Quantity required : 1

CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746

7
P2R reference P2R reference 189650
Maker reference Maker reference 1C004746

CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746

More information

Quantity required : 1

GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789

8
P2R reference P2R reference 65355
Maker reference Maker reference 0127895

GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789

More information

Quantity required : 1
