Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera 125 4T 3V iGET ABS E4 2016-2020(EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

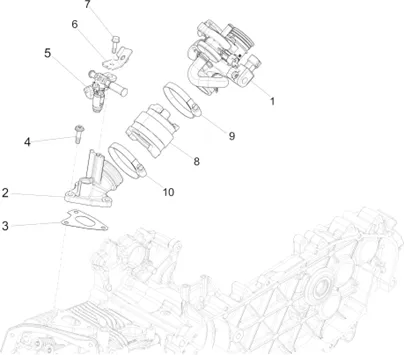

Moteur : 01.36 BOÎTIER PAPILLON - INJECTEUR - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1321/Primavera_125_4T_3V_iGET_ABS_E4_2016-2020EMEA_01.36.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/1/2/1/img/76121.jpg)
1 |
BODY INJECTION OEM PIAGGIO 125 LIBERTY 3V, VESPA PRIMAVERA 3V, SPRINT 3V 2013 >-1D000063R More informationQuantity required : 1 |
||||||
2 |
1A006945-FITTING D'ADMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/3/4/img/127234.jpg)
3 |
GASKET MANIFOLD FITTING INTAKE OEM PIAGGIO 125 FLY, LIBERTY, PRIMAVERA, SPRINT 2013 >-1A003750 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
4 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/3/6/1/img/93361.jpg)
5 |
INJECTEUR OEM PIAGGIO 125 FLY 2012 >, LIBERTY 2013 >, VESPA GTS 2013 >, VESPA LX 2012 >, PRIMAVERA 2013 >, SPRINT 2014 >, VESPA-S 2012 > (ENGINE 3 SOUPAPES)-8799715 More informationQuantity required : 1 |
||||||
|
6 |
1A003914-CALIPER More informationQuantity required : 1 |
||||||
|
7 |
1A003001-SCREW PARKER More informationQuantity required : 1 |
||||||
|
8 |
1A002367-CANALISATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
9 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/5/6/img/111556.jpg)
10 |
CLAMP SERRAGE TUBE 40-60 OEM PIAGGIO COMMON A LA RANGE-614188 More informationQuantity required : 1 |
