Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera 125 4T 3V iGET ABS E4 2016-2020(EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

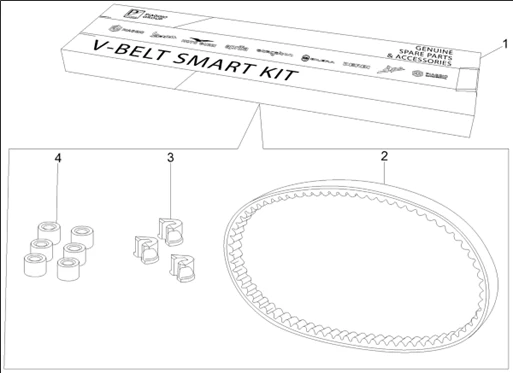

Maintenance : 07.03 KIT TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1321/Primavera_125_4T_3V_iGET_ABS_E4_2016-2020EMEA_07.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/1/3/img/157613.jpg)
1 |
KIT TRANSMISSION (BELT, GALETS, GUIDES) OEM PIAGGIO 125 LIBERTY IGET 2016 > 2020, VESPA PRIMAVERA IGET 2016 > 2020-1R000440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/2/8/img/127228.jpg)
2 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >, LIBERTY 2013 > (3 SOUPAPES)-1A003396 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/1/9/img/127219.jpg)
3 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 125 LIBERTY 2014, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >, VESPA-S 2012 > 3V-1A002460 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/7/7/0/img/127770.jpg)
4 |
GALET/ROLLER 20X15 16, 0G OEM PIAGGIO 125 LIBERTY, VESPA PRIMAVERA, SPRINT IGET 2016 > (SOLD INDIVIDUALLY)-CM169105 More informationQuantity required : 6 |
