Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera 125 4T 3V iGET ABS E4 2016-2020(EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

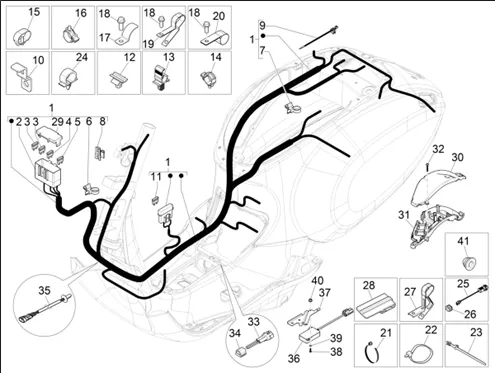

Circuit électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1321/Primavera_125_4T_3V_iGET_ABS_E4_2016-2020EMEA_06.08.png)
1 |
1D002722-WIRING HARNESS More informationQuantity required : 1 |
||||||
|
1 |
HARNESS DE CABLE OEM PIAGGIO 125-150 PRIMAVERA, SPRINT VESPA 2016 > 2020-1D002710 More informationQuantity required : 1 |
||||||
|
1 |
1D001850-WIRING HARNESS More informationQuantity required : 1 |
||||||
|
2 |
584211-FUSE HOLDER TERM. BOARD 6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/2/img/66262.jpg)
3 |
BLADE FUSE STANDARD 5A OEM PIAGGIO COMMON A LA RANGE-293256 More informationQuantity required : 2 |
||||||
|
3 |
BLADE FUSE STANDARD 5A OEM PIAGGIO COMMON A LA RANGE-293256 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
4 |
BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
5 |
BLADE FUSE STANDARD 10A OEM PIAGGIO COMMON A TOUTE LA RANGE-292507 More informationQuantity required : 1 |
||||||
|
6 |
640879-CLAMP More informationQuantity required : 1 |
||||||
|
7 |
641764-CLAMP More informationQuantity required : 1 |
||||||
|
8 |
584002-CLIP More informationQuantity required : 2 |
||||||
|
9 |
657229-CLAMP More informationQuantity required : 1 |
||||||
|
10 |
680036-PATTES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/3/0/img/110630.jpg)
11 |
BLADE FUSE STANDARD 20A OEM PIAGGIO COMMON A TOUTE LA RANGE-580561 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/5/5/img/85755.jpg)
12 |
CLIPS CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-639560 More informationQuantity required : 1 |
||||||
|
13 |
667643-BANDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
14 |
CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMON A LA RANGE-CM006903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/9/img/72909.jpg)
15 |
CLAMP MOUNTING (23MM) OEM PIAGGIO COMMON A LA RANGE-CM006908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/0/img/72910.jpg)
16 |
CLAMP CLIPS OEM PIAGGIO COMMON A LA RANGE-CM006910 More informationQuantity required : 1 |
||||||
|
16 |
CM006911-SPRING More informationQuantity required : 1 |
||||||
|
17 |
CLAMP SHEET METAL OEM PIAGGIO COMMON A LA RANGE-1D000071 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
18 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 3 |
||||||
|
19 |
1D001828-BRACKET More informationQuantity required : 1 |
||||||
|
20 |
1D000081-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
21 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
22 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
23 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-298729 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
24 |
CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590 More informationQuantity required : 2 |
||||||
|
25 |
PRISE USB OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > COMMON WITH AUTRES VEHICULES-1D003323 More informationQuantity required : 1 |
||||||
|
26 |
1B001591-GUIDE CABLES More informationQuantity required : 1 |
||||||
|
27 |
1D001828-BRACKET More informationQuantity required : 1 |
||||||
|
28 |
1B004151-PINCE DE RETENUE More informationQuantity required : 1 |
||||||
|
29 |
1D000563-CAP More informationQuantity required : 1 |
||||||
|
30 |
1B005258-HOUSING More informationQuantity required : 1 |
||||||
|
31 |
1B006124-BOX More informationQuantity required : 1 |
||||||
|
31 |
1B005478-BOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
32 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 1 |
||||||
|
33 |
1D000167-CONNECTEUR More informationQuantity required : 1 |
||||||
|
34 |
1D001098-BRACKET More informationQuantity required : 1 |
||||||
|
35 |
SENSOR OF TEMPERATURE AMBIANTE OEM PIAGGIO 50 SXR APRILIA 2021 >-1D003720R More informationQuantity required : 2 |
||||||
|
36 |
2D000305-CENTRE ELECTRONIC More informationQuantity required : 1 |
||||||
|
37 |
1B005401-BRACKET More informationQuantity required : 1 |
||||||
|
38 |
615795 SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/3/img/65363.jpg)
39 |
WASHER PLATE (3. 8X9X0. 5) OEM PIAGGIO COMMON A LA RANGE-013836 More informationQuantity required : 2 |
||||||
|
40 |
B005195 NUT More informationQuantity required : 2 |
||||||
|
41 |
1B005386-GUIDE-CABLE More informationQuantity required : 1 |
