Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera 125 4T 3V iGET ABS E4 2016-2020(EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

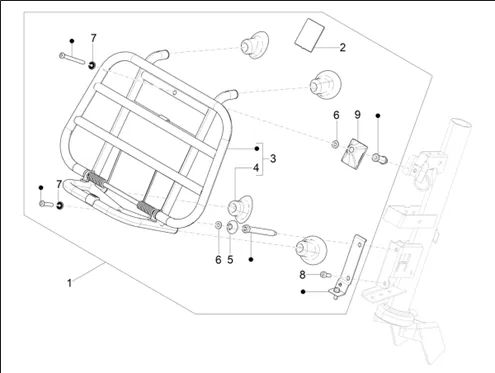

Châssis - parties plastiques - carrosseries : 02.43 PORTE-BAGAGES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1321/Primavera_125_4T_3V_iGET_ABS_E4_2016-2020EMEA_02.43.png)
1 |
DOOR-LUGGAGE FRONT OEM PIAGGIO 50-125 VESPA PRIMAVERA TOURING 2016 >-1B005438 More informationQuantity required : 1 |
||||||
|
1 |
FRONT LUGGAGE RACK "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA TOURING 2013> -1R000300 More informationQuantity required : 1 |
||||||
|
2 |
B000516 PLATE More informationQuantity required : 1 |
||||||
|
3 |
DOOR LUGGAGE FRONT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >-1B002130 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/6/2/2/img/90622.jpg)
4 |
BUFFER/VENTOUSE FOR DOOR LUGGAGE FRONT OEM PIAGGIO COMMON A LA RANGE-672066 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/7/7/3/img/90773.jpg)
5 |
WASHER GASKET OF DOOR LUGGAGE FRONT OEM PIAGGIO COMMON A LA RANGE VESPA-672330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
6 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/2/img/69132.jpg)
7 |
WASHER CRANTEE (6. 1X14X2. 1) OEM PIAGGIO COMMON A LA RANGE-834951 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/3/img/68493.jpg)
8 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-709099 More informationQuantity required : 1 |
||||||
|
9 |
1B005437-GASKET More informationQuantity required : 1 |
