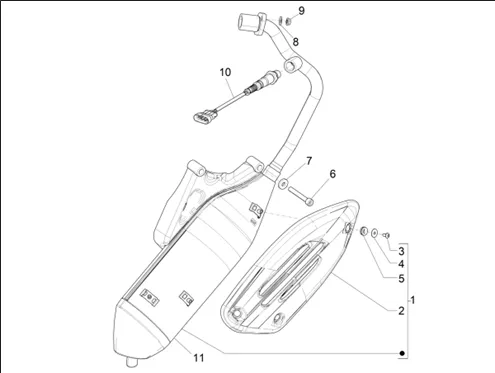

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1321/Primavera_125_4T_3V_iGET_ABS_E4_2016-2020EMEA_01.42.png)
1 |
1A0119555-SILENCER COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/6/9/4/img/153694.jpg)
2 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST MATTE BLACK OEM PIAGGIO 50-125 VESPA SPRINT, PRIMAVERA 2016 < 2020-1A011836 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/3/1/img/139631.jpg)
2 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST CHROME OEM PIAGGIO 50-125 VESPA SPRINT, PRIMAVERA 2016 < 2020-1A006767 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/1/1/img/93011.jpg)
4 |
WASHER PLATE (D5) OEM PIAGGIO COMMON A LA RANGE-844927 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/4/img/69204.jpg)
5 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-841782 More informationQuantity required : 3 |
||||||
|
6 |
872997-SCREW M8X55 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
7 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/8/img/68488.jpg)
8 |
WASHER PLATE (8. 3X18X1. 5) OEM PIAGGIO COMMON A LA RANGE-709012 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
9 |
NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/9/img/67299.jpg)
10 |
SONDE LAMBDA L 325 MM OEM PIAGGIO COMMON A LA RANGE-584344 More informationQuantity required : 1 |
||||||
|
11 |
1A011956-SILENCER D'ECHAPPEMENT COMPLETE More informationQuantity required : 1 |
