Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera 125 4T 3V iGET ABS E4 2016-2020(EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

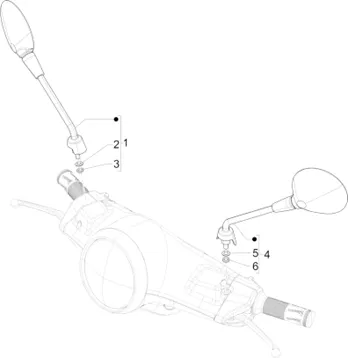

Châssis - parties plastiques - carrosseries : 02.45 RÉTROVISEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1321/Primavera_125_4T_3V_iGET_ABS_E4_2016-2020EMEA_02.45.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/3/4/3/img/96343.jpg)
1 |
RIGHT MIRROR OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >-CM261902 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/8/img/65348.jpg)
2 |
WASHER CANNELE D8 OEM PIAGGIO COMMON A LA RANGE-012538 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/2/img/65422.jpg)
3 |
WASHER PLATE (8. 2X13X2) OEM PIAGGIO COMMON A LA RANGE-016604 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/3/4/2/img/96342.jpg)
4 |
LEFT MIRROR OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >-CM261901 More informationQuantity required : 1 |
||||||
|
5 |
WASHER CANNELE D8 OEM PIAGGIO COMMON A LA RANGE-012538 More informationQuantity required : 1 |
||||||
|
6 |
WASHER PLATE (8. 2X13X2) OEM PIAGGIO COMMON A LA RANGE-016604 More informationQuantity required : 1 |
