Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera 125 4T 3V iGET ABS E4 2016-2020(EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

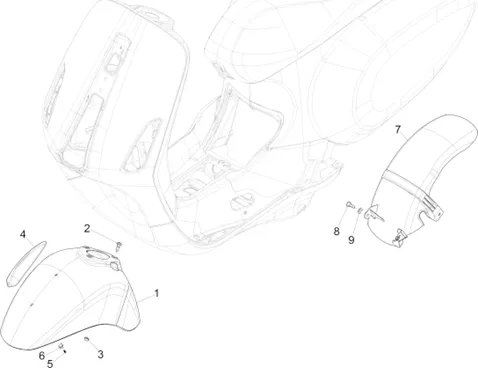

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1321/Primavera_125_4T_3V_iGET_ABS_E4_2016-2020EMEA_02.33.png)
1 |
FRONT MUDGUARD OEM PIAGGIO 50 PRIMAVERA 4T 3V 2017 > 2018, 125 PRIMAVERA 3V IGET 2016 > 2018 MARRON 129/A-1B006643000MD More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > VERT-1B006643000VY More informationQuantity required : 1 |
||||||
|
1 |
1B006643000YR5 - GARDE-BOUE AV. More informationQuantity required : 1 |
||||||
|
1 |
1B006643000ML - FRONT MUDGUARD More informationQuantity required : 1 |
||||||
|
1 |
1B006643600TE-FRONT MUDGUARD More informationQuantity required : 1 |
||||||
|
1 |
1B006643000Q9-GUARD-MUD More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > BLUE 288/A-1B006643000DY More informationQuantity required : 1 |
||||||
|
1 |
1B006643000S8-GUARD-MUD AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/1/1/4/img/153114.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > BLUE 289/A-1B006643000DK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/1/1/9/img/153119.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > BLACK 98/A-1B006643000XN2 More informationQuantity required : 1 |
||||||
|
1 |
1B003894000T8 - GARDE BOUE AV. More informationQuantity required : 1 |
||||||
|
1 |
1B006643000T9-GUARD-MUD FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/9/7/4/img/171974.jpg)
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > RED 894-1B006643000R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/9/7/3/img/171973.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > WHITE 544-1B006643000BR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/2/7/2/img/177272.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > UNPAINTED-1B006643 More informationQuantity required : 1 |
||||||
|
1 |
1B000947000YR5 - GARDE-BOUE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/3/2/0/img/146320.jpg)
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 PRIMAVERA 2013 > 2017 BLUE 279/A-1B000947000T8 More informationQuantity required : 1 |
||||||
|
1 |
1B000947000T9-MUDGUARD AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/4/0/img/75740.jpg)
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 PRIMAVERA 2013 > 2017 MARRON 129/A-1B000947600MD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/4/3/img/75743.jpg)
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 PRIMAVERA 2013 > 2017 RED 894-1B000947000R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/4/5/img/75745.jpg)
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 PRIMAVERA 2013 > 2017 BLACK 98/A-1B000947500XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/7/3/5/img/139735.jpg)
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 PRIMAVERA 2013 > 2017 WHITE 544-1B000947500BR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/3/8/img/75738.jpg)
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 PRIMAVERA 2013 > 2017 BLUE 222/A-1B000947000DE More informationQuantity required : 1 |
||||||
|
1 |
1B000947000DV - GARDE-BOUE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/3/5/img/75735.jpg)
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 PRIMAVERA 2013 > 2017 UNPAINTED-1B000947 More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > UNPAINTED-1B006643 More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > WHITE 544-1B006643000BR More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > BLUE 289/A-1B006643000DK More informationQuantity required : 1 |
||||||
|
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > RED 894-1B006643000R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/9/7/1/img/171971.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > VERT 350/A-1B006643000VK More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > BLACK 98/A-1B006643000XN2 More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2017 > VERT 350/A-1B006643000VK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
2 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
3 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 3 |
||||||
|
4 |
1B0079624 CREST MUDGUARD More informationQuantity required : 1 |
||||||
|
4 |
CM298902-GARNITURE GUARD-MUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/0/0/img/75400_20260226164026.jpg)
4 |
CRETE DE GUARD-MUD OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >-1B000042 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/1/2/2/img/153122.jpg)
4 |
CRETE FRONT MUDGUARD CHROME OEM PIAGGIO 50-125 PRIMAVERA 2017 >-1B003895 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
5 |
SCREW AUTOTARAUDEUSE (2, 9X9, 5) CRUCIFORME OEM PIAGGIO COMMON A TOUTE LA RANGE-015727 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/7/2/img/75172.jpg)
6 |
CAPSULE OF FITTING KIT FAIRING OEM PIAGGIO COMMON A LA RANGE-192598 More informationQuantity required : 2 |
||||||
|
7 |
1B011517-RR MUDGARD ASS. Y More informationQuantity required : 1 |
||||||
|
8 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
9 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 1 |
