Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera 125 4T 3V iGET ABS E4 2016-2020(EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

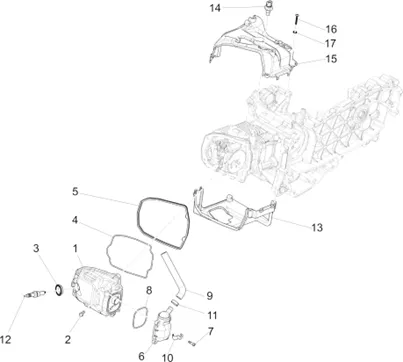

Moteur : 01.12 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1321/Primavera_125_4T_3V_iGET_ABS_E4_2016-2020EMEA_01.12.png)
1 |
B013837-COVER CYLINDER HEAD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
2 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/7/5/6/img/94756.jpg)
3 |
GASKET OF TROU SPARK PLUG OEM PIAGGIO COMMON A LA RANGE-B017488 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/8/0/img/75380.jpg)
4 |
GASKET OF COVER CYLINDER HEAD PIAGGIO 125 LIBERTY 2014, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >, VESPA-S 2012 > 3V-1A002462 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/3/4/2/img/93342.jpg)
5 |
GASKET COIFFE DE CYLINDER HEAD OEM PIAGGIO 125 FLY, LIBERTY, LX, PRIMAVERA, SPRINT 2013 > 879479 More informationQuantity required : 1 |
||||||
|
6 |
1A010598 - COUVERCLE D'EVENT DE L'HUILE More informationQuantity required : 1 |
||||||
|
6 |
1A007446-COVER More informationQuantity required : 1 |
||||||
|
6 |
1A010684-BODY PURGE OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/3/img/72733.jpg)
7 |
SCREW TORX (5X20) OEM PIAGGIO COMMON A LA RANGE-B016808 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/1/img/139391.jpg)
8 |
GASKET OF COVER CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-1A003985 More informationQuantity required : 1 |
||||||
|
9 |
1A013473 TUBE More informationQuantity required : 1 |
||||||
|
9 |
1A000842-TUBE More informationQuantity required : 1 |
||||||
|
10 |
1D000070-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
11 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/4/img/67814.jpg)
12 |
SPARK PLUG CR8EB OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-638853 More informationQuantity required : 1 |
||||||
|
13 |
1A020719-COIFFE COTE EXHAUST More informationQuantity required : 1 |
||||||
|
13 |
1A000763 - COIFFE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/1/2/img/81812.jpg)
14 |
SONDE DE TEMPERATURE OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX, 50 ZIP, PRIMAVERA, SPRINT, MP3I-58273R More informationQuantity required : 1 |
||||||
|
15 |
1A020720-COIFFE COTE INTAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
16 |
SCREW FAIRING/CARROSSERIE OEM PIGGIO COMMON A LA RANGE-259577 More informationQuantity required : 3 |
||||||
|
17 |
WASHER PLATE (5X12X1) OEM PIAGGIO COMMON A LA RANGE-828583 More informationQuantity required : 3 |
