Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

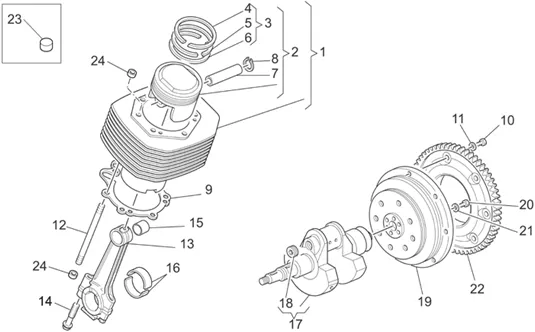

Moteur : 34.54 ARBRE MOTEUR - CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_34.54.PNG)
1 |
976182 - ASS. PISTONE/CILINDRO X 95 More informationQuantity required : 2 |
||||||
|
2 |
976069-ASS. PISTONE X 95 More informationQuantity required : 2 |
||||||
|
3 |
976183 - KIT FASCE ELASTICHE More informationQuantity required : 2 |
||||||
|
4 |
976070 - FASCIA SEGMENTO I0 CAVA More informationQuantity required : 2 |
||||||
|
5 |
976071-FASCIA SEGMENTO II0 CAVA More informationQuantity required : 2 |
||||||
|
6 |
976072 - FASCIA SEGMENTO III0 CAVA More informationQuantity required : 2 |
||||||
|
7 |
GU30061241 - AXE More informationQuantity required : 2 |
||||||
|
8 |
GU90351038 - BAGUE DE BUTEE More informationQuantity required : 4 |
||||||
|
9 |
CYLINDER BASE GASKET DE CYLINDER OEM PIAGGIO MOTO-GUZZI 1200 BREVA, GRISO, NORGE, SPORT-976064 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
10 |
SCREW BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-122675 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
11 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 8 |
||||||
|
12 |
976031 - PRIGIONIERO TESTA M10X215 More informationQuantity required : 8 |
||||||
|
13 |
976003-BIELLA COMPLETA L: 144 More informationQuantity required : 2 |
||||||
|
13 |
Bielle cpl. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/9/4/img/69594.jpg)
14 |
SCREW OF BIELLE OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-849131 More informationQuantity required : 4 |
||||||
|
14 |
GU01062230 - VITE BIELLA More informationQuantity required : 4 |
||||||
|
15 |
GU91112128-BUSH More informationQuantity required : 2 |
||||||
|
16 |
976171-SEMICUSCINETTO DI BIELLA BLU More informationQuantity required : 4 |
||||||
|
16 |
976172 - SEMICUSCINETTO DI BIELLA ROSSO More informationQuantity required : 4 |
||||||
|
16 |
GU01062030-SEMIGUSCIO BRONZINA More informationQuantity required : 4 |
||||||
|
16 |
GU30062001 - DEMI-COUSSINET 0,254 MM More informationQuantity required : 4 |
||||||
|
16 |
GU30062002-HALF-COUSSINET 0, 508 MM More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/3/3/img/130533.jpg)
16 |
GU30062003 - DEMI-COUSSINET 0,762 MM More informationQuantity required : 4 |
||||||
|
17 |
976116-ALBERO MOTORE V12 (C: 81. 2) More informationQuantity required : 1 |
||||||
|
17 |
976187-ALBERO MOTORE 1200 C/CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/1/5/img/131815.jpg)
18 |
CAP USINAGE DE VILEBREQUIN OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA, GRISO, QUOTA, V11, 1200 NORGE, BREVA, SPORT-GU37065405 More informationQuantity required : 1 |
||||||
|
19 |
GU04067000-VOLANT CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/5/6/img/99856.jpg)
20 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-976481 More informationQuantity required : 6 |
||||||
|
21 |
976484-ROSETTA CONICA ELASTICA 8 More informationQuantity required : 6 |
||||||
|
22 |
GU01067930-CORONA AVVIAMENTO More informationQuantity required : 1 |
||||||
|
23 |
GU05025330-RUBBER More informationQuantity required : 54 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
24 |
STUD CALIBRE 11. 8X10 OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI ET LES MAXI SCOOTER 400-500 CC-825597 More informationQuantity required : 6 |
