Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

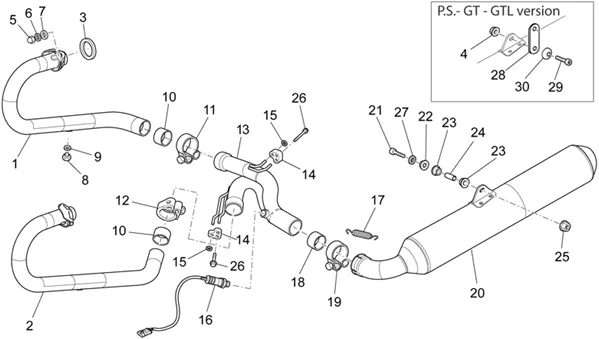

Chassis : 33.38 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.38.PNG)
1 |
983076 - TUBO SCARICO DX ELETTROL NORGE More informationQuantity required : 1 |
||||||
|
2 |
983077-TUBO SCARICO SX ELETTROL NORGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
3 |
GASKET EXHAUST SORTIE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90718370 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
4 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/0/img/73550.jpg)
5 |
NUT FLANGE (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660021 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.jpg)
7 |
WASHER PLATE (8, 4X14, 57X1, 6) OEM PIAGGIO COMMON A LA RANGE-GU95005308 More informationQuantity required : 4 |
||||||
|
8 |
GU98110007-CAP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/7/4/img/130574.jpg)
9 |
GASKET CAP COUDE EXHAUST OEM COMMON A LA RANGE MOTO GUZZI-GU30109330 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/1/img/73431.jpg)
10 |
GASKET EXHAUST OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 850-1200 BREVA, NORGE, 940 BELLAGIO-GU05121630 More informationQuantity required : 2 |
||||||
|
11 |
976522-FASCETTA STRINGITUBO DX PER COMPENSATORE More informationQuantity required : 1 |
||||||
|
12 |
976523-FASCETTA STRINGITUBO SX PER COMPENSATORE More informationQuantity required : 1 |
||||||
|
13 |
977664 - RACCORDO 2 IN 1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/4/img/73434.jpg)
14 |
RUBBER MOUNT EXHAUST OEM PIAGGIO MOTO GUZZI 850-1200 NORGE, BREVA, 940 BELLAGIO, 1200 SPORT/APRILIA 1200 CAPONORD, 850 MANA-GU05124230 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/1/img/73541.jpg)
15 |
WASHER FOR SHAFT D8 OEM MOTO GUZZI COMMON A LA RANGE-GU90274008 More informationQuantity required : 4 |
||||||
|
16 |
GU32727010 - SONDE LAMDA More informationQuantity required : 1 |
||||||
|
17 |
AP8121170-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/6/img/73436.jpg)
18 |
GASKET EXHAUST OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO-GU05128230 More informationQuantity required : 1 |
||||||
|
19 |
976521-FASCETTA STRIGITUBO PER SILENZIATORE More informationQuantity required : 1 |
||||||
|
20 |
97766515 - SILENZIATORE ESTERNO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/1/img/133161.jpg)
21 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-GU98680445 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
22 |
BUSH/WASHER CREUSE MOUNTING SILENCER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134378 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/5/img/71745.jpg)
23 |
RUBBER DE SILENCER EXHAUST OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144071 More informationQuantity required : 2 |
||||||
|
24 |
883079-SPACER 8, 5X11, 9X25, 5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/3/img/132533.jpg)
25 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-GU92650138 More informationQuantity required : 1 |
||||||
|
26 |
GU05124330-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/9/img/132669.jpg)
27 |
WASHER 8, 5X24X2 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU95005312 More informationQuantity required : 1 |
||||||
|
28 |
977798-PIASTRINA BRACKET MARMITTA * More informationQuantity required : 1 |
||||||
|
28 |
978086-PIASTRINA BRACKET MARMITTA NORGE PA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
29 |
SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150 More informationQuantity required : 1 |
||||||
|
30 |
BUSH/WASHER CREUSE MOUNTING SILENCER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134378 More informationQuantity required : 1 |
