Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

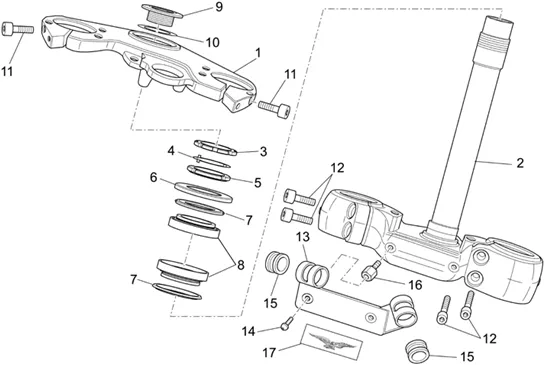

Chassis : 33.07 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.07.PNG)
1 |
GU05493130 - PLAQUE SUP.FOURCHE More informationQuantity required : 1 |
||||||
|
2 |
GU05494030-BASE WITH TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/5/img/71525.jpg)
3 |
NUT DE COLONNE DE STEERING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8123643 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/0/img/71450.jpg)
4 |
WASHER DE SECURITE DE STEERING OEM PIAGGIO APRILIA 1000 RSV, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO-AP8121207 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/4/img/71524.jpg)
5 |
NUT DE STEERING OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123642 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/6/img/71526.jpg)
6 |
WASHER PROTECTOR-POUSSIERE OEM APRILIA/MOTOGUZZI COMMON A LA RANGE-AP8123644 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/3/img/71523.jpg)
7 |
ANNEAU PROTECTOR-POUSSIERE STEERING OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO-GUZZI-AP8123641 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/8/2/img/176082.jpg)
8 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
8 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
8 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
8 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/4/9/img/71449.jpg)
9 |
BUSH DE PLATINE SUPERIEURE FORK OEM MOTO GUZZI COMMON A LA RANGE-AP8121205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/6/img/71976.jpg)
10 |
WASHER FOR NUT TE DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8152384 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
11 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
12 |
SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150 More informationQuantity required : 4 |
||||||
|
13 |
977693-PIASTRINA FERMO TUBI BRAKE ANT More informationQuantity required : 1 |
||||||
|
14 |
GU98350215 - VIS More informationQuantity required : 2 |
||||||
|
15 |
GU03658201-BUSH More informationQuantity required : 2 |
||||||
|
16 |
977618 - VITE FISSAGGIO FIANCATE More informationQuantity required : 2 |
||||||
|
17 |
GU01517700-" DECAL " " AQUILIA " * More informationQuantity required : 1 |
