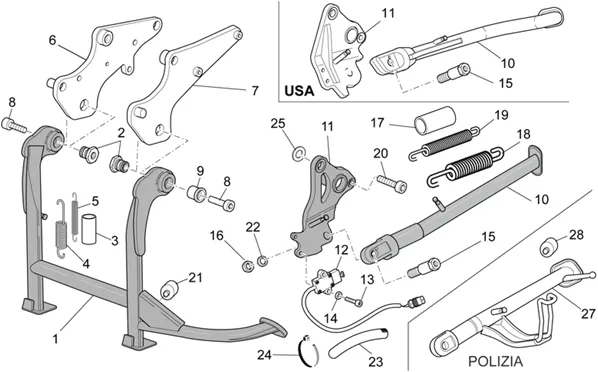

Chassis : 33.03 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.03.PNG)
1 |
GU05430330 - BEQUILLE CENTRALE More informationQuantity required : 1 |
||||||
|
2 |
884169-BRACKET CAVALLETTO CENTR More informationQuantity required : 2 |
||||||
|
3 |
AP8178918-PROTEC. RESS. STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/6/img/72316.jpg)
4 |
AP8221317-SPRING RAPPEL BEQ. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/7/img/72317.jpg)
5 |
SPRING DE STAND INNER OEM MOTO GUZZI BREVA, NORGE-AP8221318 More informationQuantity required : 1 |
||||||
|
6 |
GU05432930 - PLAQUE D. More informationQuantity required : 1 |
||||||
|
7 |
GU05433430-PLATE G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
8 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150195 More informationQuantity required : 2 |
||||||
|
9 |
SPACER DE CENTRE STAND OEM PIAGGIO MOTO-GUZZI 1200 NORGE, STELVIO, 850-1100 BREVA-GU05429630 More informationQuantity required : 2 |
||||||
|
10 |
977079 - CAVALLETTO LATERALE BREVA 1100 More informationQuantity required : 1 |
||||||
|
10 |
977093-CAVALLETTO SIDE USA BREVA 1100 More informationQuantity required : 1 |
||||||
|
11 |
977080-PLATE CAVALLETTO SIDE CON PI More informationQuantity required : 1 |
||||||
|
11 |
977408-PLATE CAVAL LAT USA BREVA 1100 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/7/img/67837.jpg)
12 |
CONTACTEUR DE SIDE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-639542 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/9/8/img/133098.jpg)
13 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-GU98612216 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/9/0/img/132690.jpg)
14 |
WASHER GROWER (5, 3X8, 9X2, 4) OEM PIAGGIO COMMON A LA RANGE-GU95020105 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/6/img/71476.jpg)
15 |
SCREW SIDE STAND OEM PIAGGIO MOTO-GUZZI GRISO, NEVADA, NORGE, STELVIO-AP8121607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/3/img/71503.jpg)
15 |
SCREW MOUNTING SIDE STAND OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121994 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
16 |
NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
17 |
PROTECTOR SPRING DE SIDE STAND OEM PIAGGIO COMMON A LA RANGE-AP8102524 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/3/img/72303.jpg)
18 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO-AP8221204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/4/img/72304.jpg)
19 |
SPRING INTERNE RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221211 More informationQuantity required : 1 |
||||||
|
20 |
GU98231235 - VIS M12X35 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/9/img/71739.jpg)
21 |
BUFFER RUBBER (6X10) OEM APRILIA COMMON A LA RANGE-AP8144030 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
22 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 1 |
||||||
|
23 |
GU00823923140-GUAINA NERA D16 S0, 4 VETR More informationQuantity required : 1 |
||||||
|
24 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/9/img/132689.jpg)
25 |
WASHER PLATE (13X24X2. 5) OEM PIAGGIO COMMON A LA RANGE-GU95008313 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/5/4/img/130654.jpg)
26 |
WASHER SPECIALE (13X18X1, 7) OEM PIAGGIO COMMON A LA RANGE-GU30217900 More informationQuantity required : 2 |
||||||
|
27 |
883390-CAVALLETTO SIDE NORGE PS More informationQuantity required : 1 |
||||||
|
28 |
GU93242007-BUFFER More informationQuantity required : 1 |
