Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

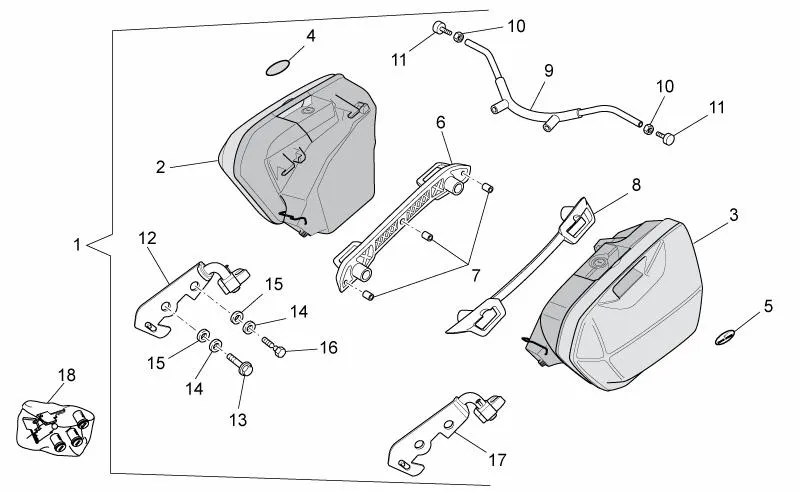

Chassis : 33.72 SIDE CASES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.72.PNG)
1 |
88323300YA1 - *KIT BORSE NORGE PS More informationQuantity required : 1 |
||||||
|
2 |
88323400YA1 - *BORSA LAT DX AZZURRO MEDIO POLIZIA More informationQuantity required : 1 |
||||||
|
3 |
88323500YA1 - *BORSA LAT SX AZZURRO MEDIO POLIZIA More informationQuantity required : 1 |
||||||
|
4 |
977303-TARGHETTA AQUILA DX (ROSSO/FIL ORO) More informationQuantity required : 1 |
||||||
|
5 |
977218-TARGHETTA AQUILA SX (ROSSO/FIL ORO) More informationQuantity required : 1 |
||||||
|
6 |
GU05485030-MOUNTING SUP DX VALISE SIDE More informationQuantity required : 1 |
||||||
|
7 |
AP8144629-GOMMINO More informationQuantity required : 6 |
||||||
|
8 |
GU05486530-MOUNTING SUP SX VALISE SIDE More informationQuantity required : 1 |
||||||
|
9 |
GU05486830-TRAVERSINO POST BRACKET VALIGIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/1/img/71861.JPG)
10 |
NUT HEXAGONAL AUTOFREINÉ M6-AP8150333 More informationQuantity required : 2 |
||||||
|
11 |
AP8706329-GOMMINO D: 20 H: 10 M6X20 More informationQuantity required : 2 |
||||||
|
12 |
GU05485130-ATTACCO INF DX VALIGIE LATERALI * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
13 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
14 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
15 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
16 |
SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140 More informationQuantity required : 2 |
||||||
|
17 |
GU05486630-ATTACCO INF SX VALIGIE LATERALI * More informationQuantity required : 1 |
||||||
|
18 |
978220-KIT ROTORI CON COPPIA CHIAVI More informationQuantity required : 1 |
