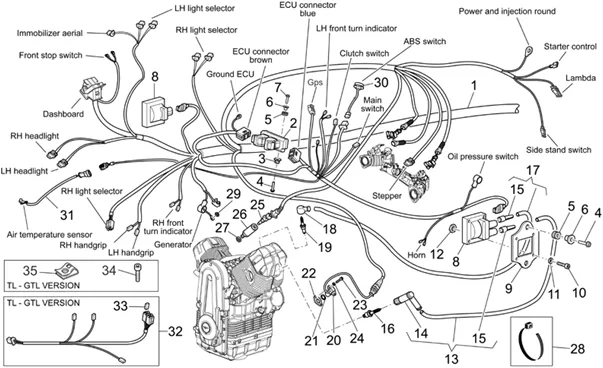

Chassis : 33.48 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.48.PNG)
1 |
978887-CABLAGGIO NORGE More informationQuantity required : 1 |
||||||
|
2 |
CDI UNIT "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, BREVA, SPORT -977676- More informationQuantity required : 1 |
||||||
|
3 |
GU05729230-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
4 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
5 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
6 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
7 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 2 |
||||||
|
8 |
GU05716530-BOBINE HT * More informationQuantity required : 2 |
||||||
|
9 |
GU05716730-BRACKET BOBINE More informationQuantity required : 2 |
||||||
|
10 |
GU98682125-SCREW M4X25 More informationQuantity required : 8 |
||||||
|
11 |
GU95008204-WASHER 4, 3X8X0, 5 More informationQuantity required : 8 |
||||||
|
12 |
GU92630104-NUT M4X0, 7 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/8/7/img/128887.jpg)
13 |
SPARK PLUG CABLE "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, BREVA, SPORT -GU05718330- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/7/5/img/128275.jpg)
14 |
ANTIPARASITE (EQUIVALENT LB05E) OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >-GU03717450 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
15 |
CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/5/img/130935.jpg)
16 |
SPARK PLUG BPR6ES OEM PIAGGIO COMMON A LA RANGE-GU30717061 More informationQuantity required : 2 |
||||||
|
17 |
GU05718331-CABLE HT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/4/img/72604.jpg)
18 |
ANTIPARASITE OEM PIAGGIO MOTO-GUZZI 1200 BREVA, SPORT, NORGE/APRILIA 450-550 RXV, SXV-AP9100423 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/6/5/3/img/124653.jpg)
19 |
SPARK PLUG PMR8B OEM PIAGGIO 1200 MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO, 1100 CALIFORNIA, BELLAGIO-GU05717030 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/7/img/101947.jpg)
20 |
SENSOR OF PHASE/REGIME OEM PIAGGIO MOTO-GUZZI 750-1100-1200 BREVA, NORGE, GRISO, 1200 STELVIO, SPORT, 1100 CALIFORNIA, V11, 750 V7, 940 BELLAGIO-GU01721600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
21 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/8/img/101948.jpg)
22 |
GASKET SENSOR PHASE/TOURS (0. 3MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722700 More informationQuantity required : 1 |
||||||
|
22 |
GU01722701-GUARNIZIONE 0, 4MM More informationQuantity required : 1 |
||||||
|
22 |
GU01722702-GUARNIZIONE 0, 6MM More informationQuantity required : 1 |
||||||
|
22 |
GASKET SENSOR PHASE/TOURS (0. 8MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722703 More informationQuantity required : 1 |
||||||
|
22 |
GASKET SENSOR PHASE/TOURS (1MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722704 More informationQuantity required : 1 |
||||||
|
22 |
GU01722705-GUARNIZIONE 1, 5MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/3/9/img/130439.jpg)
22 |
GASKET SENSOR PHASE/TOURS (0. 5MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU29722760 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
23 |
SCREW BTR (5X12) OEM PIAGGIO COMMON ALA RANGE MOTO-GUZZI-GU98682212 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/1/img/132681.jpg)
24 |
WASHER PLATE (5. 3X10X0. 8) OEM PIAGGIO COMMON A LA RANGE-GU95008205 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/4/6/img/130446.jpg)
25 |
SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/1/1/img/102511.jpg)
26 |
BRACKET SENSOR TEMPERATURE OIL OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU03163330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
27 |
WASHER PLATE (10, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-GU95008210 More informationQuantity required : 1 |
||||||
|
28 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 22 |
||||||
|
28 |
GU30609600 - COLLIER 8,8X185 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
29 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
|
30 |
GU05780430-INTERRUPTEUR ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.jpg)
31 |
SENSOR/DETECTEUR DE TEMPERATURE AIR OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO GUZZI-AP8124936 More informationQuantity required : 1 |
||||||
|
32 |
977874-CABLAGGIO AZIONAMENTO PARABREZZA More informationQuantity required : 1 |
||||||
|
33 |
GU01731760 - RELE' DEV. SIEMENS A1001A403 More informationQuantity required : 2 |
||||||
|
34 |
SCREW BTR (5X12) OEM PIAGGIO COMMON ALA RANGE MOTO-GUZZI-GU98682212 More informationQuantity required : 2 |
||||||
|
35 |
GU01576531-CLIP M4 More informationQuantity required : 2 |
