Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

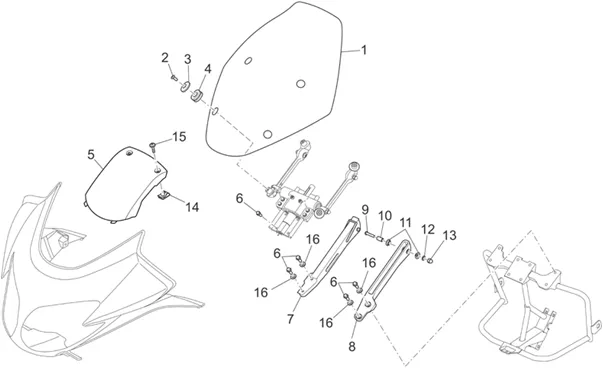

Chassis : 33.18 PARE-BRISE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.18.PNG)
1 |
977118-PARABREZZA NORGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/3/img/73563.jpg)
2 |
SCREW BTR HEAD FRAISEE (6X18) OEM PIAGGIO COMMON A LA RANGE-GU98257618 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/6/img/66086.jpg)
3 |
WASHER OF FITTING KIT WINDSCREEN OEM PIAGGIO 125 LIBERTY PTT 2012 >/MOTO-GUZZI 1200 NORGE, STELVIO-269787 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/3/img/66993.jpg)
4 |
RUBBER/RUBBER MOUNT (15 X32 X13) PROTECTOR PRISE OEM PIAGGIO COMMON A LA RANGE-560173 More informationQuantity required : 4 |
||||||
|
5 |
977854-COPERTURA MOTORINO ELETTRICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
6 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 8 |
||||||
|
7 |
977604-STAFFA PARABREZZA DX More informationQuantity required : 1 |
||||||
|
8 |
977605-STAFFA PARABREZZA SX More informationQuantity required : 1 |
||||||
|
9 |
GU98370630-SCREW M6X30 More informationQuantity required : 2 |
||||||
|
10 |
977644-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/7/1/img/71071.jpg)
11 |
BUSH DE WINDSCREEN OEM PIAGGIO 800 GP 2007 > 2011-977645 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
12 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 2 |
||||||
|
13 |
GU92787006-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
14 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
15 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
16 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 4 |
