Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

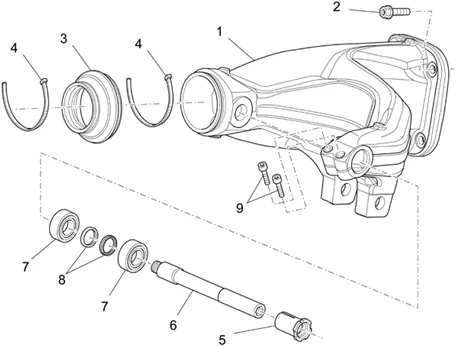

Chassis : 33.09 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.09.PNG)
1 |
977261-MONOBRACCIO GREY NORGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/5/img/71965.jpg)
2 |
SCREW FLANGE TH (10X35) OEM PIAGGIO COMMON A LA RANGE-AP8152318 More informationQuantity required : 4 |
||||||
|
3 |
883966-SOUFFLET EN RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/0/4/img/132604.jpg)
4 |
HOSE CLAMP NYLON TYPE RILSAN 3. 6X375MM OEM PIAGGIO COMMON A LA RANGE-GU93304390 More informationQuantity required : 2 |
||||||
|
5 |
GU05547130-BUSH More informationQuantity required : 1 |
||||||
|
6 |
GU05547030-PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/2/6/img/132426.jpg)
7 |
BEARING A ROULEAUX (25X47X17) PIVOT DE CASING TRANSMISSION OEM PIAGGIO MOTO-GUZZI-GU92249224 More informationQuantity required : 2 |
||||||
|
8 |
GU05547930-BUSH D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
9 |
GU98682325-SCREW TCEI M6X25 More informationQuantity required : 2 |
