Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

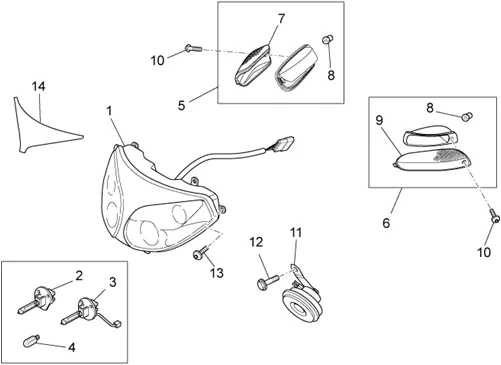

Chassis : 33.46 FEU AV/KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.46.PNG)
1 |
883816-PROIETTORE ANT NORGE 4V More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/1/img/67171.jpg)
2 |
AMPOULE/LAMPE 12V 55W H1 OEM PIAGGIO COMMON A LA RANGE-580141 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/0/img/66270.jpg)
3 |
AMPOULE/LAMPE 12V 55W H3 OEM PIAGGIO COMMON A LA RANGE-294278 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
4 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
|
5 |
AP8127684 - INDICATORE DIREZIONE POST.SX More informationQuantity required : 1 |
||||||
|
6 |
AP8127683 - INDICATORE DIREZIONE POST.DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/3/img/71623.jpg)
7 |
CABOCHON DE REAR LEFT INDICATOR OEM PIAGGIO APRILIA 1000 RSV-2, TUONO V2/MOTO-GUZZI 850-1200 NORGE-AP8127702 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
8 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/2/img/71622.jpg)
9 |
CABOCHON DE REAR RIGHT INDICATOR OEM PIAGGIO APRILIA 1000 RSV-2, TUONO V2/MOTO-GUZZI 850-1200 NORGE-AP8127701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/3/img/71893.jpg)
10 |
SCREW BTR HEAD BOMBEE (4X16) OEM PIAGGIO COMMON A LA RANGE-AP8150493 More informationQuantity required : 2 |
||||||
|
11 |
GU05743730 - KLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
12 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 1 |
||||||
|
13 |
GU98325316-SCREW More informationQuantity required : 6 |
||||||
|
14 |
978571-DECAL PER FARO More informationQuantity required : 1 |
