Vehicle Exploded View - APRILIA MOJITO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

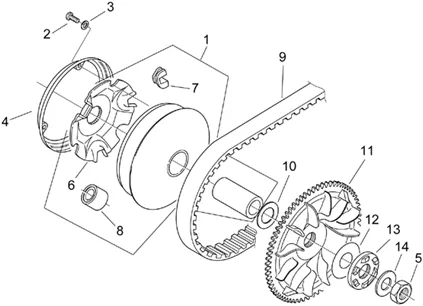

Moteur : 29.49 GROUPE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/256/Mojito_125_1999-2001_29.49.PNG)
1 |
82522R-HALF PULLEY EX 478153 * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
2 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/6/img/63836.jpg)
3 |
WASHER SPRING (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-006964 More informationQuantity required : 3 |
||||||
|
4 |
COUVERCLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/5/img/66505.jpg)
5 |
NUT 10X1. 25 OEM PIAGGIO COMMON A LA RANGE-436789 More informationQuantity required : 1 |
||||||
|
6 |
REAR COVER GREY |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/1/img/66461.jpg)
7 |
GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, FLY 2005 >, VESPA LX 2005 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 2005 >-4348555 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/7/img/66757.jpg)
8 |
GALET/ROLLER OEM PIAGGIO 125 HEXAGON LX4, VESPA ET4, LIBERTY, SFERA/APRILIA 125 MOJITO (SET OF 6)-4878225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/1/5/img/68515.jpg)
9 |
DRIVE BELT OF TRANSMISSION OEM PIAGGIO 125 HEXAGON LX4 1997 > 2005, LIBERTY 1998 > 2005/APRILIA 125 HABANA, MOJITO 1999 > 2001-825059 More informationQuantity required : 1 |
||||||
|
10 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/9/img/68529.jpg)
11 |
DRIVING HALF PULLEY "PIAGGIO GENUINE PART" 125 HEXAGON LX4, VESPA ET4, SFERA, LIBERTY 125 1998>1999/APRILIA 125 MOJITO -82523R More informationQuantity required : 1 |
||||||
|
12 |
RONDELLE |
||||||
|
13 |
OEM SCOOTER KICK OEM PIAGGIO 125 LIBERTY, SFERA, EXAGON, VESPA ET4/APRILIA 125 MOJITO-435027 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/2/img/66502.jpg)
14 |
WASHER SPRING (10. 5X21. 8X2) OEM PIAGGIO COMMON A LA RANGE-436698 More informationQuantity required : 1 |
