Vehicle Exploded View - APRILIA MOJITO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

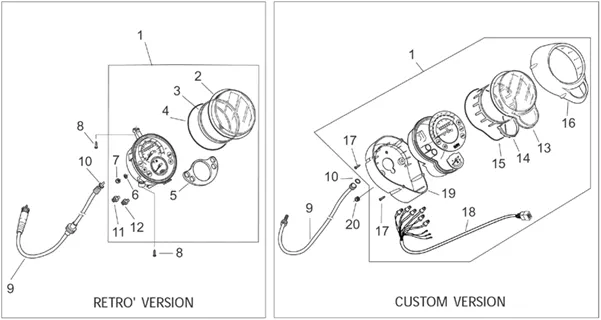

Chassis : 28.18 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/256/Mojito_125_1999-2001_28.18.PNG)
1 |
AP8124649 - TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
|
1 |
Tableau de bord; |
||||||
|
1 |
AP8224311 - CRUSCOTTO More informationQuantity required : 1 |
||||||
|
2 |
Vitre tableau de bord |
||||||
|
3 |
AP8224218 - ECRAN ECLAIRAGE More informationQuantity required : 1 |
||||||
|
4 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
|
5 |
AP8224217 - CACHE CHROME More informationQuantity required : 1 |
||||||
|
6 |
Rondelle inox |
||||||
|
7 |
Ecrou |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
8 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 3 |
||||||
|
9 |
AP8214210 - CABLE TRANSM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/4/1/img/71341.jpg)
9 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 MOJITO-AP8114472 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/5/img/56835.jpg)
10 |
O-RING (115) OEM PIAGGIO COMMON A LA RANGE-AP8220177 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/6/0/img/56260.JPG)
11 |
DOOR-AMPOULE COMPLETE-AP8212408 More informationQuantity required : 3 |
||||||
|
12 |
AP8124888 - PORTE-AMPOULE COMPLET More informationQuantity required : 4 |
||||||
|
13 |
AP8224231 - VITRE TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
14 |
AP8224232-ECRAN DIFFUSEUR More informationQuantity required : 1 |
||||||
|
15 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
|
16 |
AP8224240-CADRE CHROME More informationQuantity required : 1 |
||||||
|
17 |
Vis taraud |
||||||
|
18 |
AP8124921 - CABLAGE AVEC LAMPES; More informationQuantity required : 1 |
||||||
|
19 |
AP8249265 - COQUE INFERIEURE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
20 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 3 |
