Vehicle Exploded View - APRILIA MOJITO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

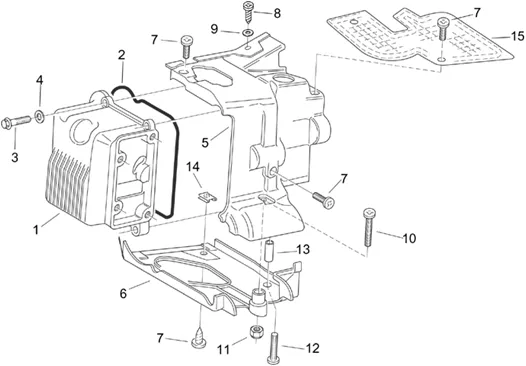

Moteur : 29.45 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/256/Mojito_125_1999-2001_29.45.PNG)
1 |
CACHE CULASSE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/6/img/66606.jpg)
2 |
GASKET COVER CYLINDER HEAD OEM PIAGGIO 125 ET4 VINTAGE-481075 More informationQuantity required : 1 |
||||||
|
3 |
Vis bride |
||||||
|
4 |
016335-WASHER More informationQuantity required : 4 |
||||||
|
5 |
486067 - CACHE More informationQuantity required : 1 |
||||||
|
6 |
Couvre-cylindre côté échap. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
7 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/1/img/65391.jpg)
8 |
SCREW PARKER (5X15) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015737 More informationQuantity required : 2 |
||||||
|
9 |
013754-WASHER S01375400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/8/img/65398.jpg)
10 |
SCREW CRUCIFORME (5X35) OEM PIAGGIO COMMON A LA RANGE-015835 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
11 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-804457 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/1/img/66291.jpg)
12 |
SCREW CRUCIFORME (5X30) ORIGIINE PIAGGIO COMMON A LA RANGE-296324 More informationQuantity required : 1 |
||||||
|
13 |
Entretoise |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/5/6/img/111156.jpg)
14 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-CM017414 More informationQuantity required : 2 |
||||||
|
15 |
Pann.antich. |
