Vehicle Exploded View - APRILIA MOJITO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

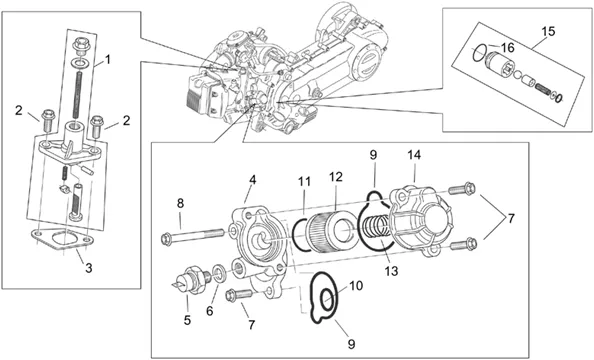

Moteur : 29.47 FILTRE À HUILE - TENDEUR DE CHAÎNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/256/Mojito_125_1999-2001_29.47.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
1 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
|
1 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
2 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
3 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/7/img/66607.jpg)
4 |
OIL FILTER UNION "PIAGGIO GENUINE PART" 125 VESPA ET4, HEXAGON, LIBERTY, SFERA/APRILIA 125 MOJITO -482162 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
5 |
SENSOR PRESSION D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER ET MOTO (PREVOIR ADAPTATEUR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT)-1A024308R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/3/img/66703.jpg)
6 |
GASKET OF MANO OU DE VIDANGE OEM PIAGGIO COMMON A LA RANGE-486075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
7 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/0/img/66200.jpg)
8 |
SCREW OF MOUNTING CARBURETTOR FLOAT BOWL OEM PIAGGIO COMMON A LA RANGE-288862 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/8/img/66608.jpg)
9 |
GASKET COVER DE OIL FILTER OEM PIAGGIO 125 LIBERTY 1998 > 2005, SFERA 1998 > 2005, VESPA ET4 1998 > 2004/APRILIA 125 MOJITO 1999 > 2001-482186 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/1/img/66611.jpg)
10 |
O-RING OEM PIAGGIO COMMON A LA RANGE-482302 More informationQuantity required : 1 |
||||||
11 |
Joint torique |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/3/img/66353.jpg)
12 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 125 LIBERTY 1998 > 2005, SFERA 1998 > 2005, VESPA ET4 1998 > 2004/APRILIA 125 MOJITO 1999 > 2001-410229 More informationQuantity required : 1 |
||||||
|
13 |
RESSORT |
||||||
|
14 |
COUVERCLE |
||||||
|
15 |
4366325-VOLET THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/5/img/66465.jpg)
16 |
O-RING (12, 42X1) OEM PIAGGIO COMMON A LA RANGE-434947 More informationQuantity required : 1 |
