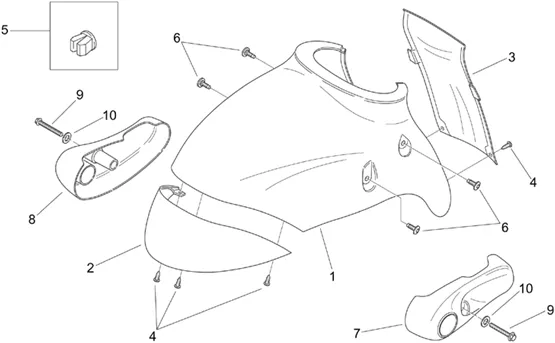

Vehicle Exploded View - APRILIA MOJITO 125 1999-2001 APRILIA

Chassis : 28.07 CARROSSERIE AV. - GARDE-BOUE AV
Carrosserie av. - Garde-boue AV
Search
Garde-boue avant vert a.;

1
P2R reference P2R reference
Maker reference Maker reference AP8126748

Garde-boue avant vert a.;

AP8226560 - GARDE-BOUE AVANT PEINT ORANGE;

1
P2R reference P2R reference 57659
Maker reference Maker reference AP8226560

AP8226560 - GARDE-BOUE AVANT PEINT ORANGE;

More information

Quantity required : 1

Garde-boue AV bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8226561

Garde-boue AV bleu;

Garde-boue AV noir;

1
P2R reference P2R reference
Maker reference Maker reference AP8226562

Garde-boue AV noir;

AP8226570 - G.-BOUE AV.NOIR APR.;

1
P2R reference P2R reference 57660
Maker reference Maker reference AP8226570

AP8226570 - G.-BOUE AV.NOIR APR.;

More information

Quantity required : 1

AP8226591 - GARDE-BOUE AV., ROUGE C.;

1
P2R reference P2R reference 57669
Maker reference Maker reference AP8226591

AP8226591 - GARDE-BOUE AV., ROUGE C.;

More information

Quantity required : 1

AP8226682 - GARDE-B AV. BLEU;

1
P2R reference P2R reference 57694
Maker reference Maker reference AP8226682

AP8226682 - GARDE-B AV. BLEU;

More information

Quantity required : 1

AP8248966 - GARDE-B AV. BLEU;

1
P2R reference P2R reference 58704
Maker reference Maker reference AP8248966

AP8248966 - GARDE-B AV. BLEU;

More information

Quantity required : 1

Décor gard-b AV bleu;

2
P2R reference P2R reference
Maker reference Maker reference AP8249058

Décor gard-b AV bleu;

AP8249079 - DECOR GARD-B AV NOIR;

2
P2R reference P2R reference 58726
Maker reference Maker reference AP8249079

AP8249079 - DECOR GARD-B AV NOIR;

More information

Quantity required : 1

AP8249393 - DECOR GARD-B AV ROUGE;

2
P2R reference P2R reference 58785
Maker reference Maker reference AP8249393

AP8249393 - DECOR GARD-B AV ROUGE;

More information

Quantity required : 1

AP8249826 - DECOR GARD-B AV NOIR;

2
P2R reference P2R reference 58879
Maker reference Maker reference AP8249826

AP8249826 - DECOR GARD-B AV NOIR;

More information

Quantity required : 1

AP8258115 - DECOR GARD-B AV BLEU;

2
P2R reference P2R reference 59035
Maker reference Maker reference AP8258115

AP8258115 - DECOR GARD-B AV BLEU;

More information

Quantity required : 1

AP8148489 - DECOR GARD-B AV VERT;

2
P2R reference P2R reference 50346
Maker reference Maker reference AP8148489

AP8148489-GRAPHIC GARD-B AV VERT

More information

Quantity required : 1

AP8248967 - ENJ. G-BOUE AV.CHR.;

2
P2R reference P2R reference 58705
Maker reference Maker reference AP8248967

AP8248967-ENJ. G-MUD AV. CHR.

More information

Quantity required : 1

Décor gard-b AV orange;

2
P2R reference P2R reference
Maker reference Maker reference AP8249037

Décor gard-b AV orange;

Fermet. gard-b AV, vert a.;

3
P2R reference P2R reference
Maker reference Maker reference AP8139881

Fermet. gard-b AV, vert a.;

AP8249209 - FERM. G.-B.AV.NOIRE;

3
P2R reference P2R reference 58748
Maker reference Maker reference AP8249209

AP8249209-FERM. G.-B. AV. BLACK

More information

Quantity required : 1

Fermet. gard-b AV orange;

3
P2R reference P2R reference
Maker reference Maker reference AP8249038

Fermet. gard-b AV orange;

Fermet. gard-b AV noire;

3
P2R reference P2R reference
Maker reference Maker reference AP8249080

Fermet. gard-b AV noire;

Fermet. gard-b AV, rouge c.;

3
P2R reference P2R reference
Maker reference Maker reference AP8249394

Fermet. gard-b AV, rouge c.;

AP8258116 - FERM. G.-B.AV. BLEUE;

3
P2R reference P2R reference 59036
Maker reference Maker reference AP8258116

AP8258116 - FERM. G.-B.AV. BLEUE;

More information

Quantity required : 1

Ferm. g.-b.av. bleue;

3
P2R reference P2R reference
Maker reference Maker reference AP8248968

Ferm. g.-b.av. bleue;

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

4
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 5

RIVET EN PLASTIQUE CARROSSERIE OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8102671

5
P2R reference P2R reference 71191
Maker reference Maker reference AP8102671

RIVET EN PLASTIQUE CARROSSERIE OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8102671

More information

Quantity required : 5

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

6
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 4

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

6
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 4

AP8248961 - COUVERCLE CHROME BIELLE G;

7
P2R reference P2R reference 58700
Maker reference Maker reference AP8248961

AP8248961 - COUVERCLE CHROME BIELLE G;

More information

Quantity required : 1

AP8248171 - COUVERCLE CHROME BIELLE D;

8
P2R reference P2R reference 58532
Maker reference Maker reference AP8248171

AP8248171 - COUVERCLE CHROME BIELLE D;

More information

Quantity required : 1

AP8152341 - VIS BRIDE

9
P2R reference P2R reference 50985
Maker reference Maker reference AP8152341

AP8152341-SCREW FLANGE

More information

Quantity required : 2

WASHER PLATE (5. 3X10X1) OEM PIAGGIO COMMON A LA RANGE-AP8150012

10
P2R reference P2R reference 71805
Maker reference Maker reference AP8150012

WASHER PLATE (5. 3X10X1) OEM PIAGGIO COMMON A LA RANGE-AP8150012

More information

Quantity required : 2
