Vehicle Exploded View - APRILIA MOJITO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

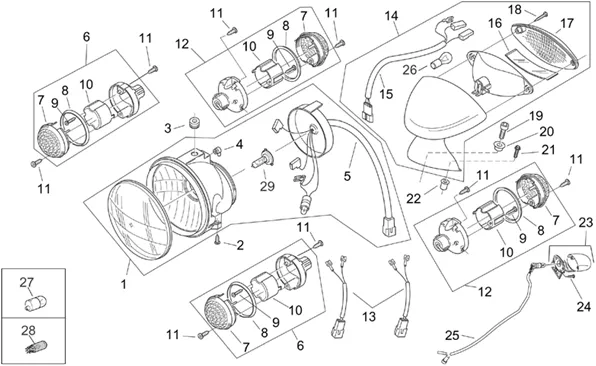

Chassis : 28.32 FEUX - RETRO'
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/256/Mojito_125_1999-2001_28.32.PNG)
1 |
Phare avant |
||||||
|
1 |
AP8124861 - PHARE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
2 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
3 |
RUBBER (7X15) OEM PIAGGIO COMMON A LA RANGE-AP8120405 More informationQuantity required : 1 |
||||||
|
4 |
AP8220554 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
5 |
Câblage feu AV a/coiffe |
||||||
|
6 |
INDICATOR FRONT OEM PIAGGIO 50 MOJITO, HABANA 2008 >-AP8224066 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/3/0/8/img/57308.jpg)
7 |
CABOCHON DE INDICATOR OEM PIAGGIO APRILIA 50-125 MOJITO RETRO-AP8224222 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/3/1/8/img/57318.jpg)
8 |
BUSH CHROMEE INDICATOR OEM PIAGIO MOJITO 50/125 1999 > 2010-AP8224234 More informationQuantity required : 4 |
||||||
|
9 |
Vis taraud |
||||||
|
10 |
AP8224235 - CARTER INT. More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
11 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 8 |
||||||
|
12 |
FLASHER-REAR "PIAGGIO GENUINE PART" 50 MOJITO, HABANA 2008> -AP8224066- More informationQuantity required : 2 |
||||||
|
13 |
AP8224075-WIRING CLIGNOT. More informationQuantity required : 2 |
||||||
|
14 |
AP8127045 - FEU AR BLEU REEF; More informationQuantity required : 1 |
||||||
|
14 |
Feu arrière, vert a.; |
||||||
|
14 |
Feu arrière, rouge c.; |
||||||
|
14 |
AP8127048 - FEU AR NOIR APRILIA; More informationQuantity required : 1 |
||||||
|
14 |
TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50-125 MOJITO -AP8127049- More informationQuantity required : 1 |
||||||
|
14 |
AP8258125-LAMP AR BLUE More informationQuantity required : 1 |
||||||
|
15 |
AP8224227 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
16 |
AP8224228-VERRE LUMIERE PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/3/1/4/img/57314.jpg)
17 |
AP8224229 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
18 |
AP8224243-SCREW TARAUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
19 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
20 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
21 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
22 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 2 |
||||||
|
23 |
AP8124168-LAMP DE PLATE More informationQuantity required : 1 |
||||||
|
24 |
AP8150120-SCREW More informationQuantity required : 1 |
||||||
|
25 |
AP8124758-WIRING LUMIERE PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
26 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 1 |
||||||
|
27 |
|
||||||
|
28 |
|
||||||
|
29 |
|
