Vehicle Exploded View - APRILIA MOJITO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

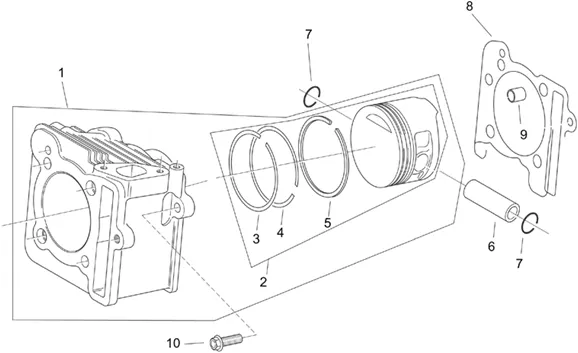

Moteur : 29.42 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/256/Mojito_125_1999-2001_29.42.PNG)
1 |
8271155 - KIT REVIS CYL ET4 More informationQuantity required : 1 |
||||||
|
2 |
PISTON CN |
||||||
|
2 |
PISTON CN |
||||||
|
2 |
PISTON 1ERE MAJ |
||||||
|
2 |
PISTON 2EME MAJ |
||||||
|
2 |
PISTON 3 EM COTE |
||||||
|
3 |
487994 - SEGMENT SUP 1/MAJ More informationQuantity required : 1 |
||||||
|
3 |
487998 - SEGMENT SUP 2/MAJ More informationQuantity required : 1 |
||||||
|
3 |
485958 - SEGMENT SUP 3/MAJ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/2/img/66692.jpg)
3 |
PISTON RING DE LAMP OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-485779 More informationQuantity required : 1 |
||||||
|
4 |
487996-PISTON RING 1M More informationQuantity required : 1 |
||||||
|
4 |
Segm.racleur d'huile |
||||||
|
4 |
487999 - SEGMENT INF 2/MAJ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/7/img/66697.jpg)
4 |
PISTON RING INTERMEDIAIRE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-485914 More informationQuantity required : 1 |
||||||
|
5 |
487996-PISTON RING 1M More informationQuantity required : 1 |
||||||
|
5 |
825029-PISTON RING 2M More informationQuantity required : 1 |
||||||
|
5 |
485959 - SEGMENT 3M More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/3/img/66713.jpg)
5 |
PISTON RING RACLEUR D'HUILE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-486362 More informationQuantity required : 1 |
||||||
|
6 |
4344170001 - AXE PISTON More informationQuantity required : 1 |
||||||
|
7 |
434979-CIRCLIPS More informationQuantity required : 2 |
||||||
|
8 |
436360 - JOINT 0,4 More informationQuantity required : 1 |
||||||
|
8 |
478289 - JOINT 0,6 More informationQuantity required : 1 |
||||||
|
8 |
478290-GASKET 0, 7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/6/img/66476.jpg)
9 |
PION DE CENTRAGE N- 2 OEM PIAGGIO COMMON A LA RANGE-435571 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
10 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
